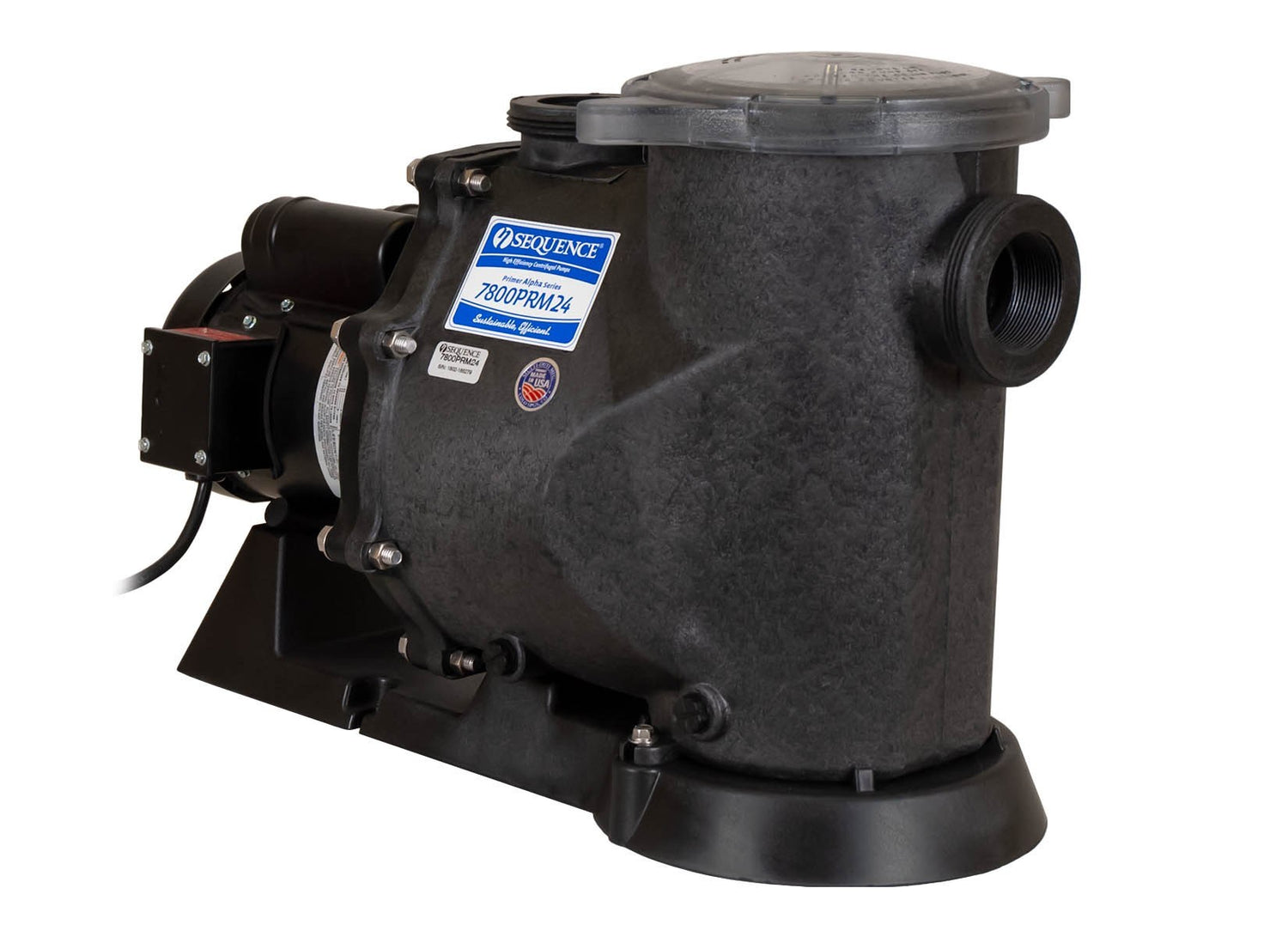

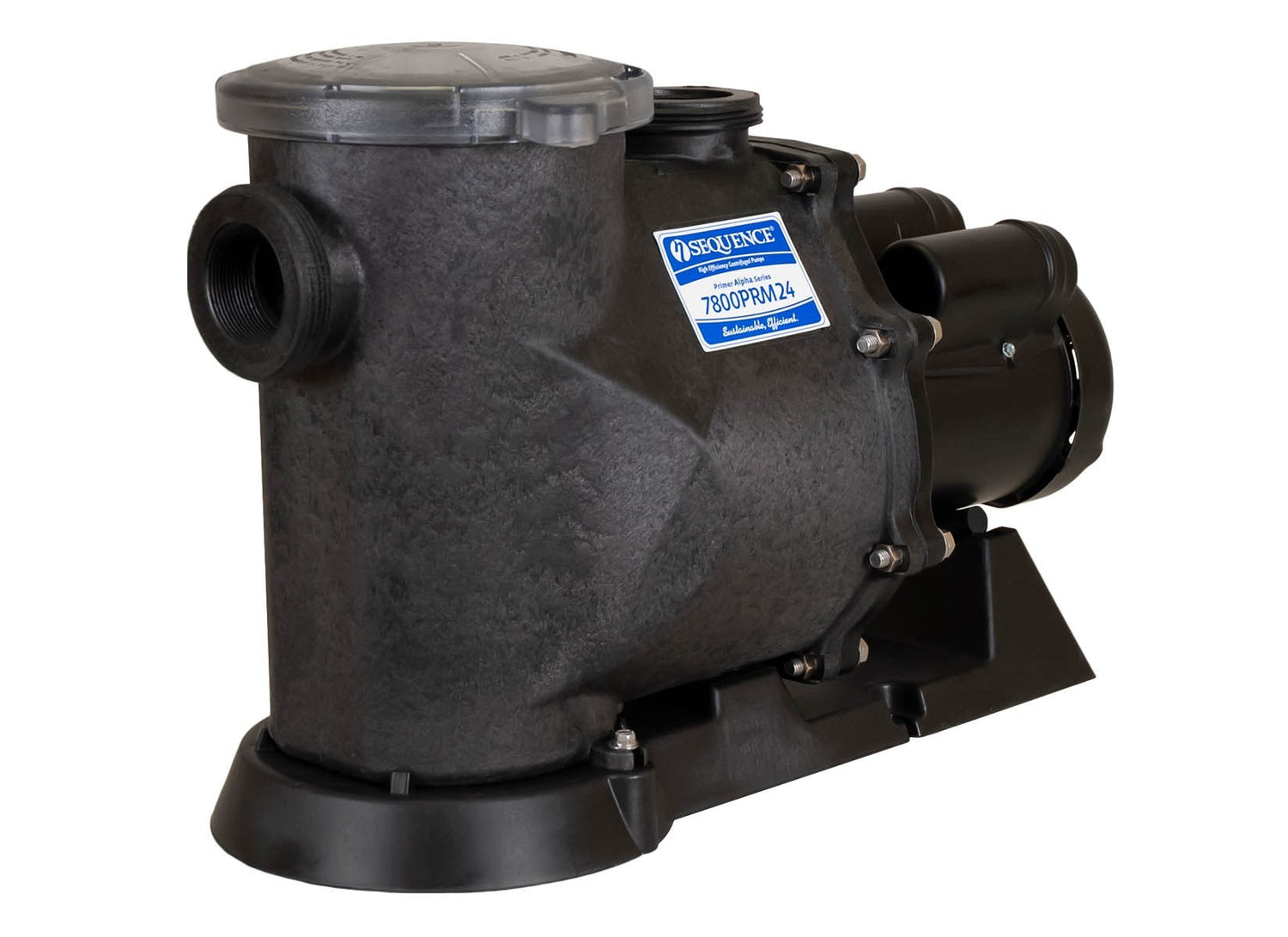

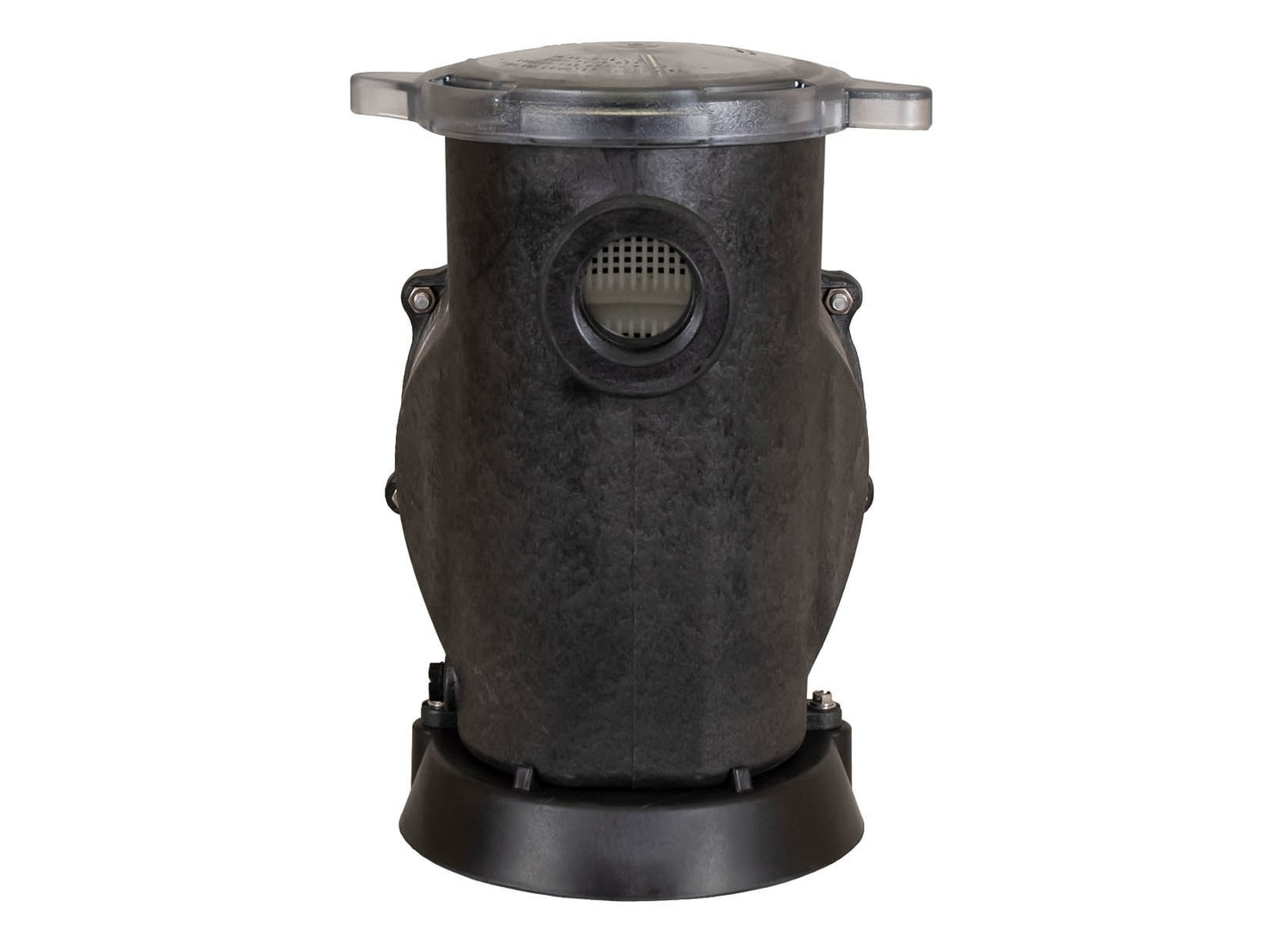

The Alpha Primer series integrates a basket-type pre-filter and self-priming capabilities into one efficient package for trouble-free operation. The motor is totally enclosed, fan-cooled for durability 115V or 230V with an 8-foot cord set.
Five-year limited warranty. Special features include an internal diffuser to allow for the displacement of trapped air. This type of pump will continue to move water even when there is some air in the line.
The integrated strainer basket on all primer units helps protect the internal rotating parts of the pump from damage due to external debris being pulled into the pump. The simple cover allows for quick cleaning.
Installation Manual
File Size: 397.99 kb
Model
|
Inlet
|
Discharge
|
Max Flow (GPH)
|
Max Head (Ft.)
|
Max Power
|
Max Current (Amps)
|
Volts
|
Motor HP
|
Motor Enclosure
|

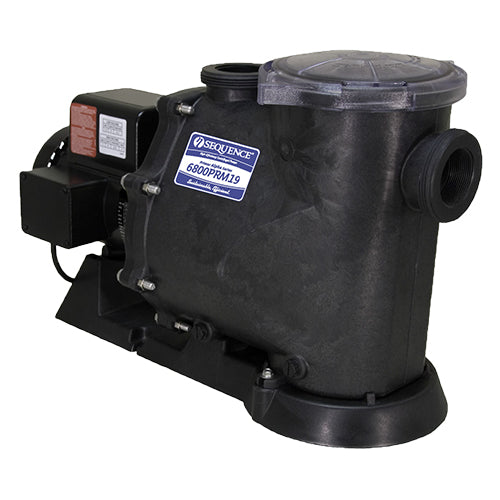

6800PRM19
|
2"
|
2"
|
6800
|
19'
|
369
|
3.93
|
115
|
1/2,1/3
|
TEFC
|

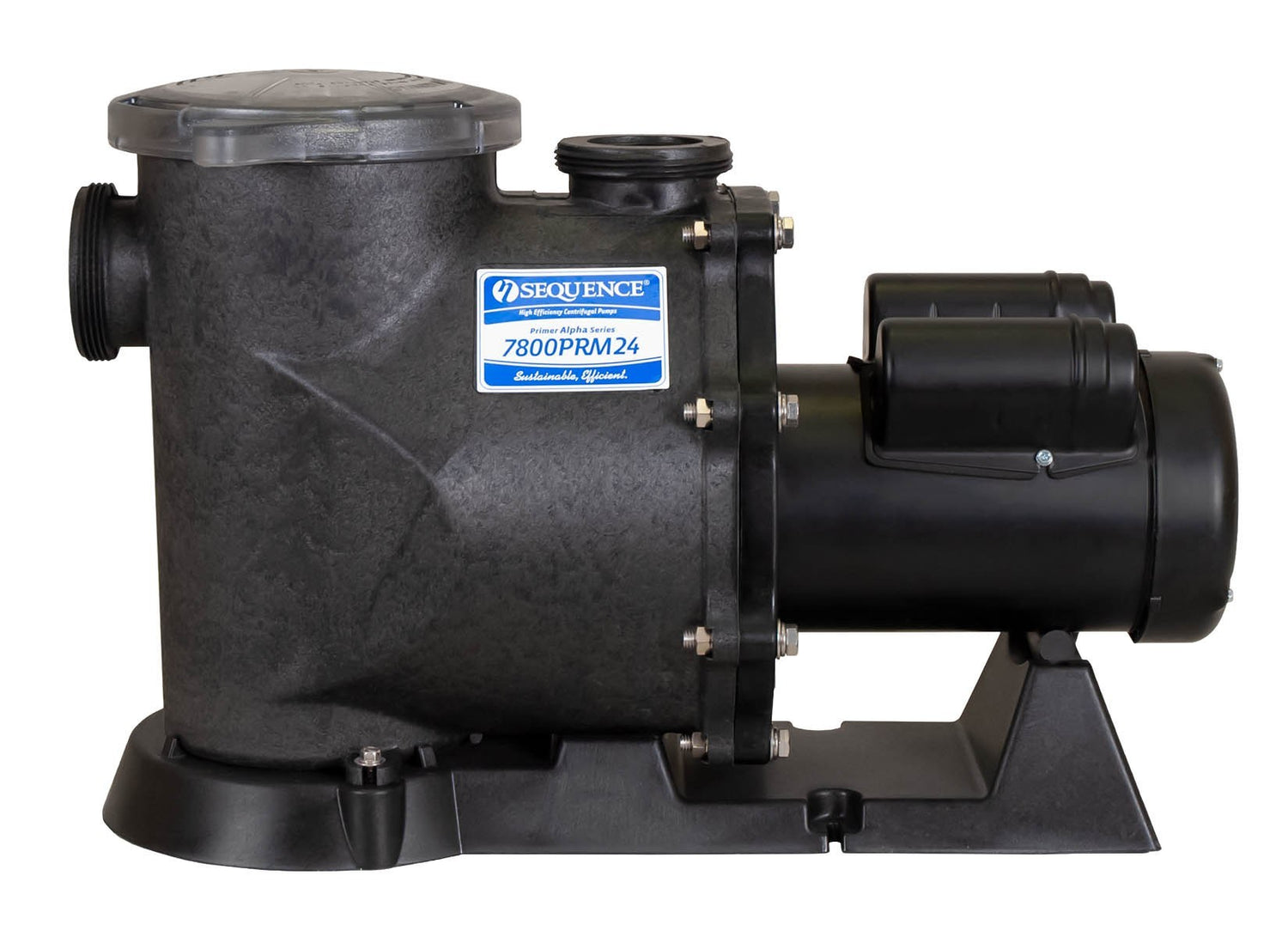

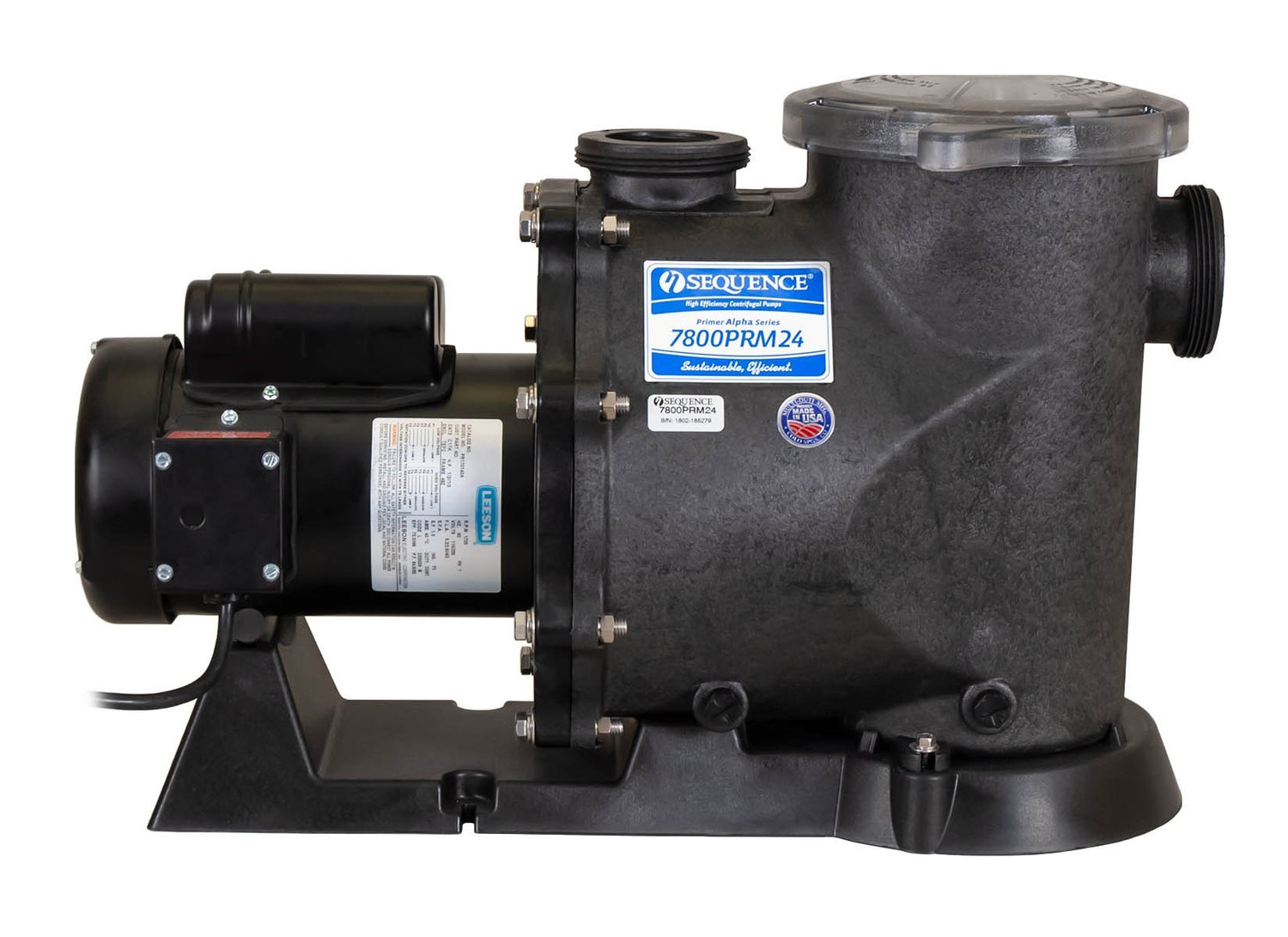

7800PRM24
|
2"
|
2"
|
7800
|
24'
|
504
|
5.02
|
115
|
1/2,1/3
|
TEFC
|
