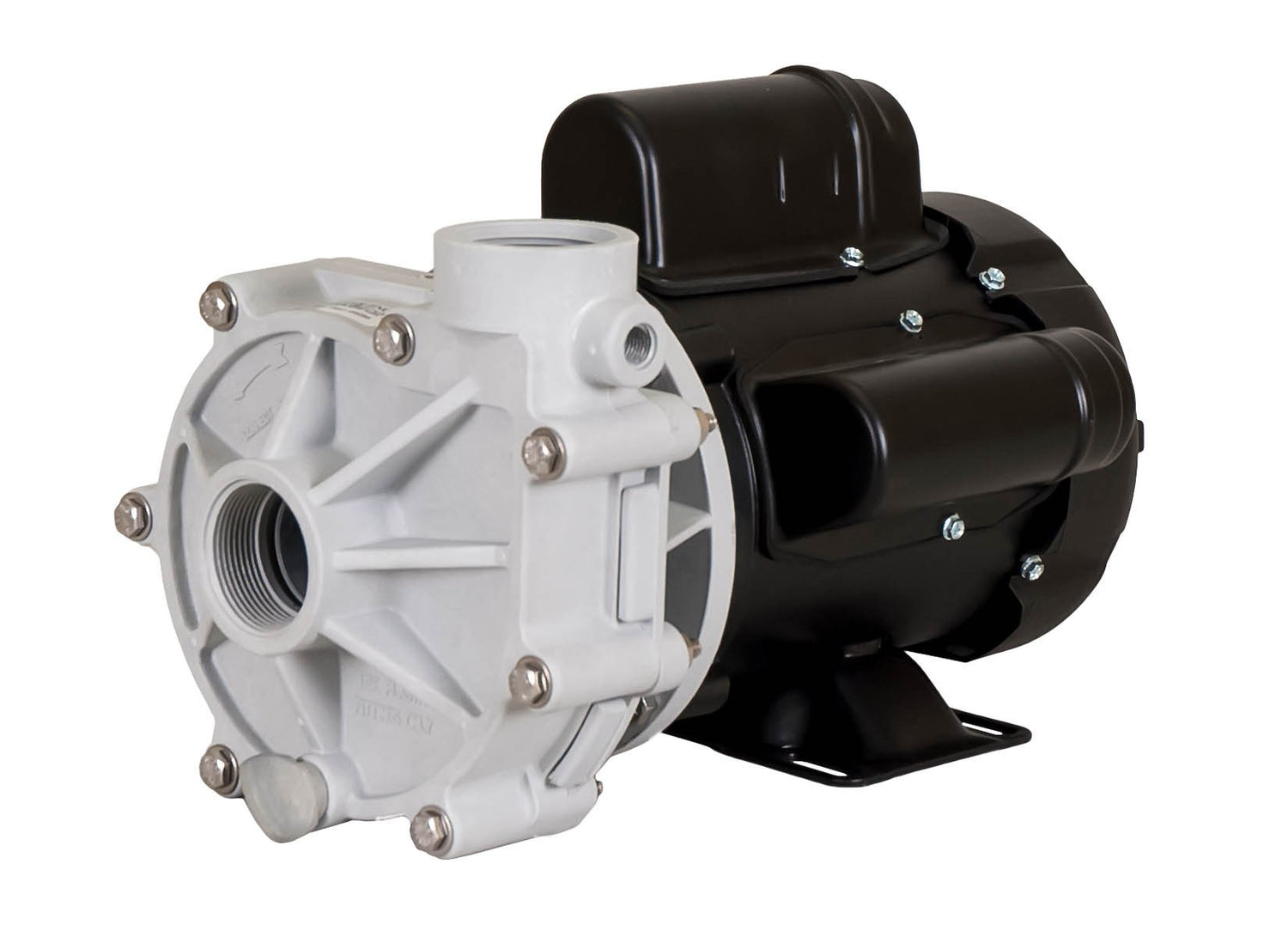

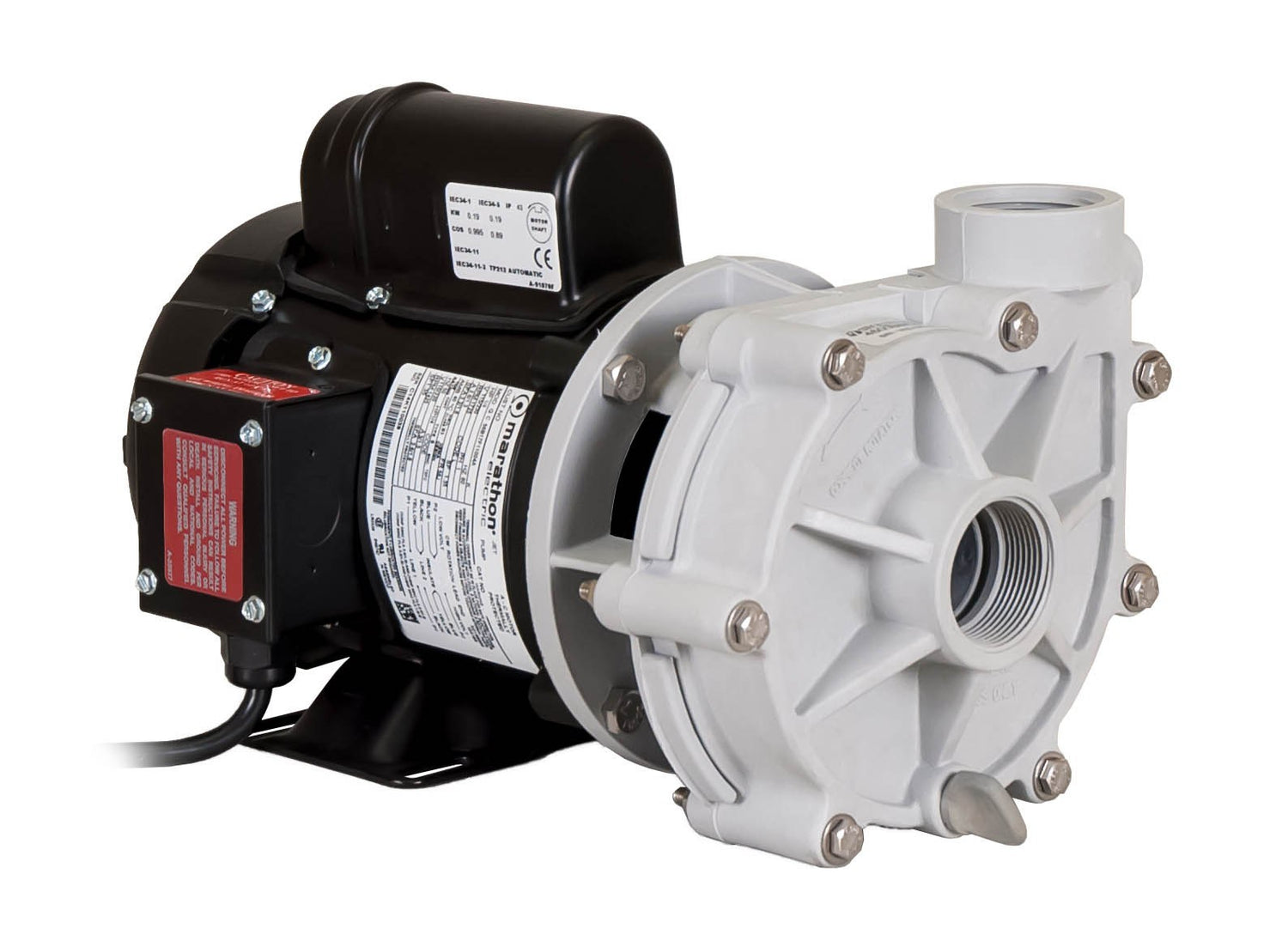

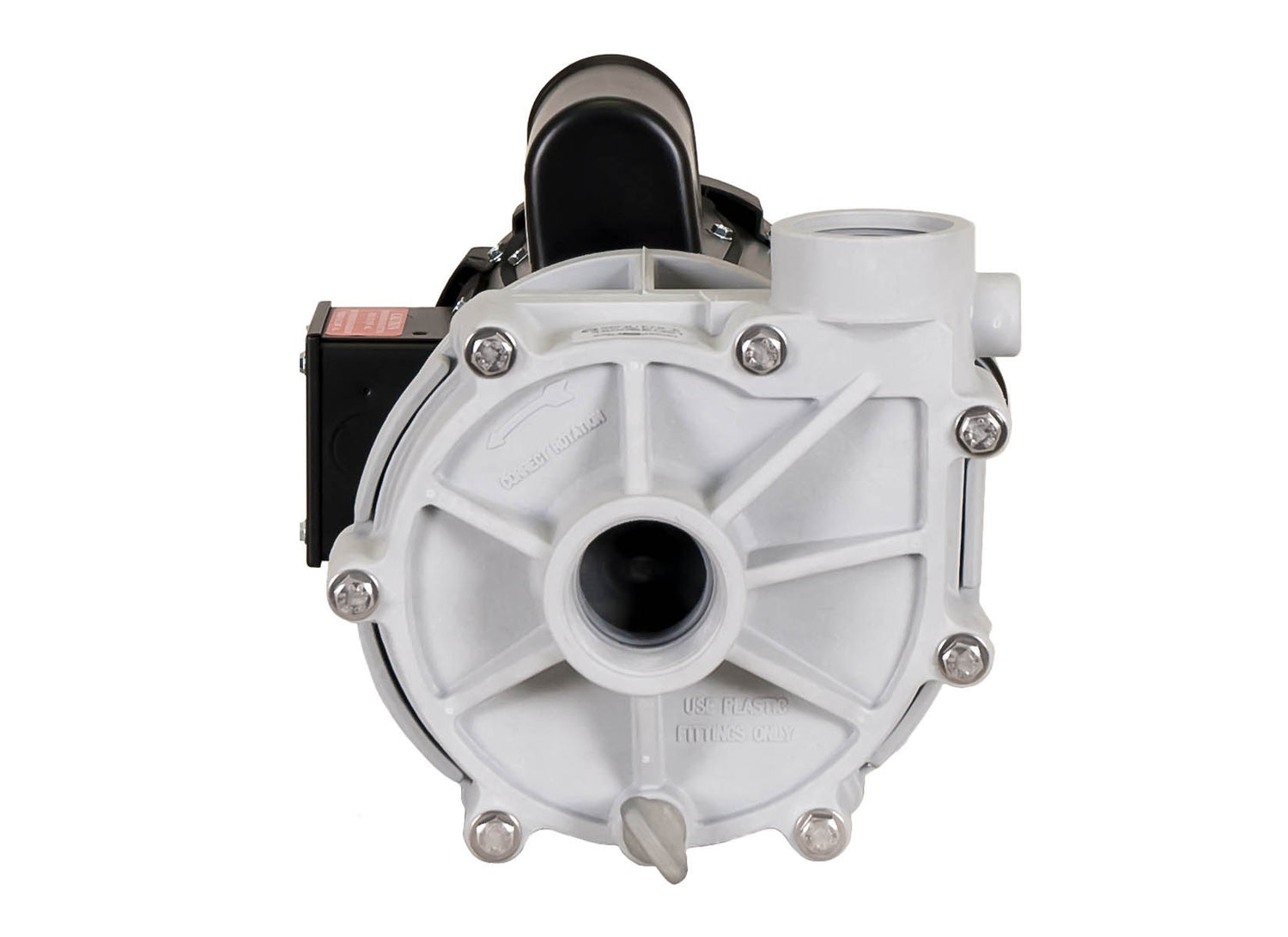

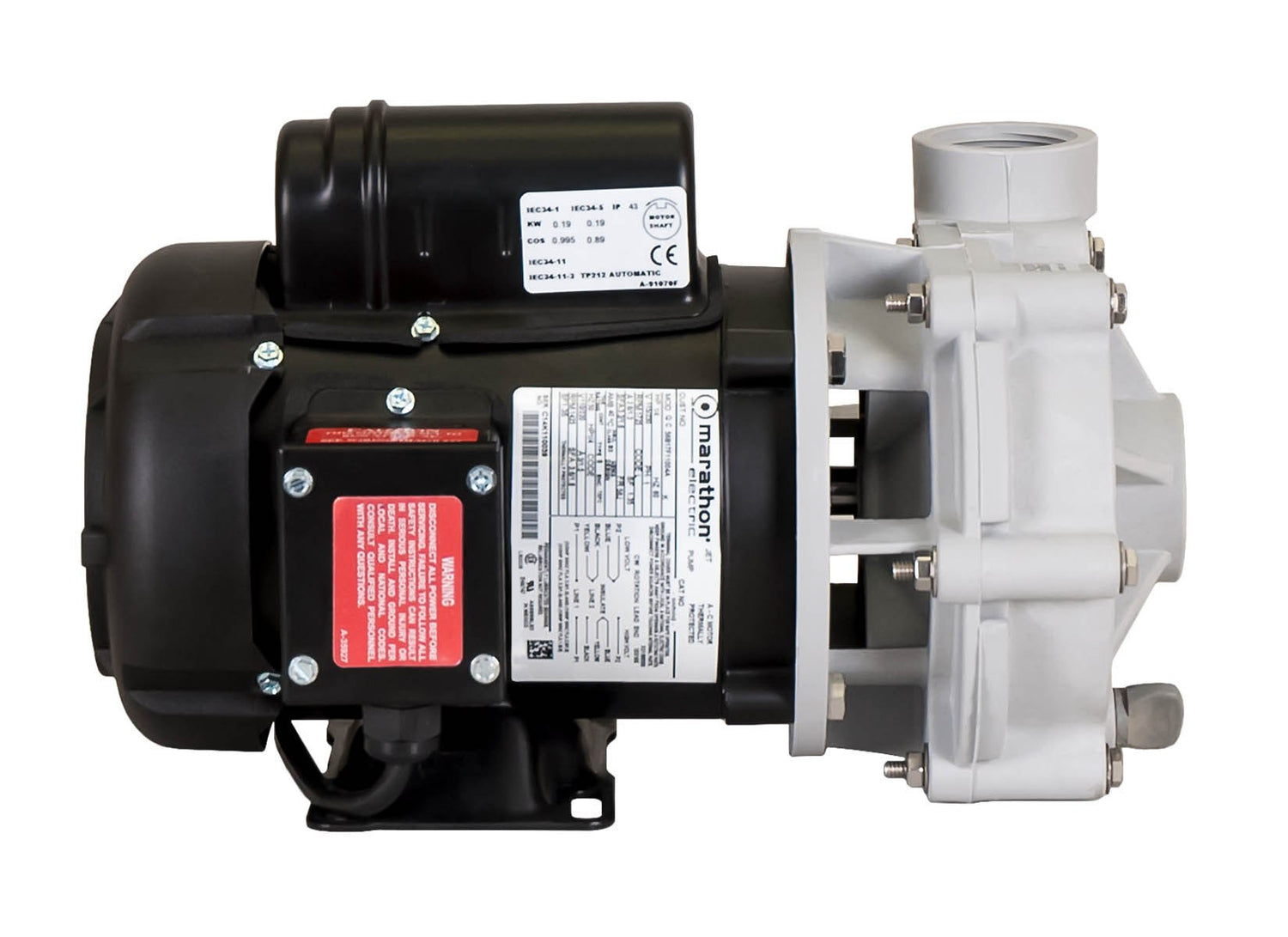

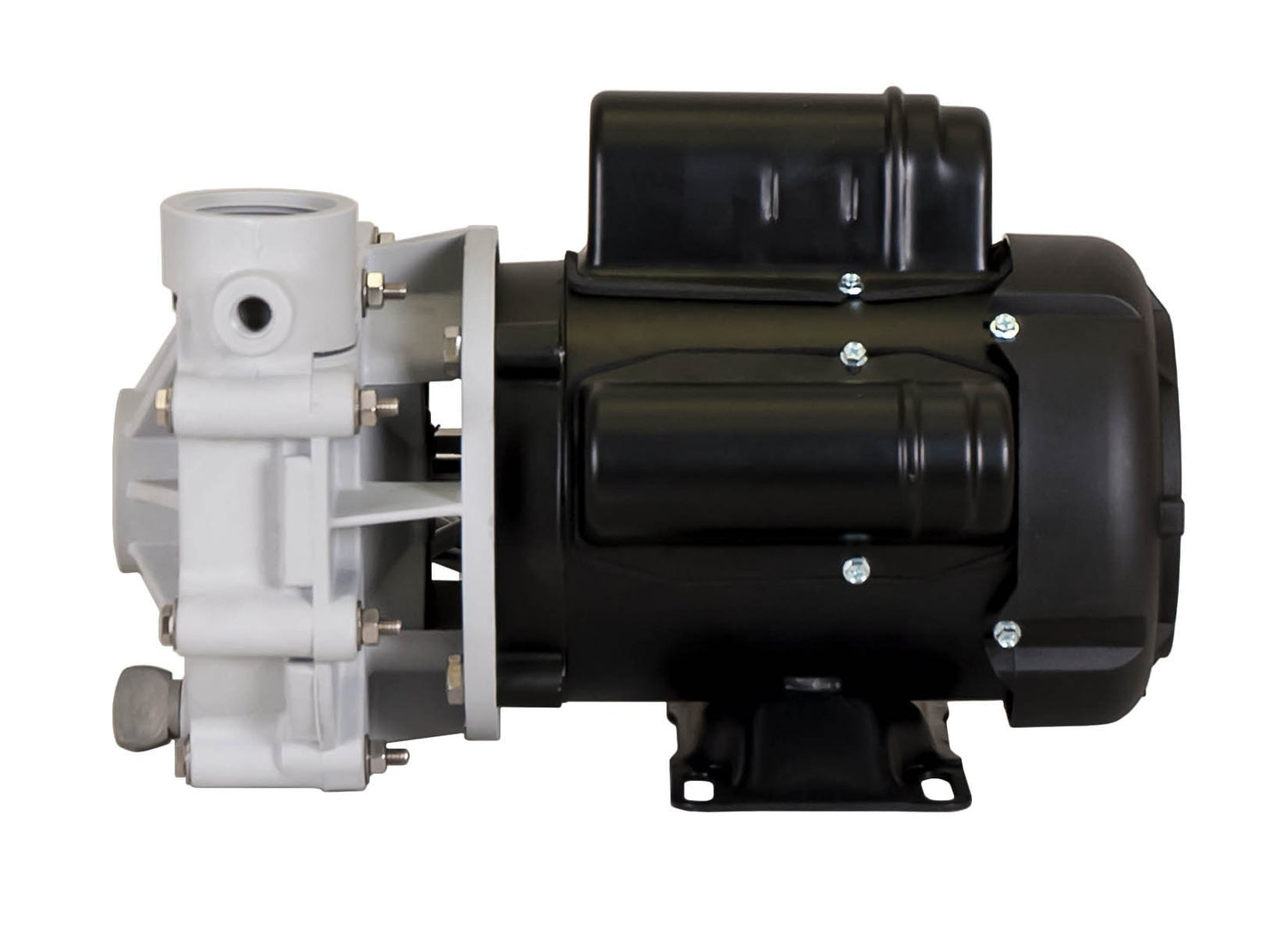

The Classic! The model 1000 series has set the standard by which all others are measured. This series is a perfect blend of medium pressure and ample flow for the majority of ponds. The motor is totally enclosed, fan-cooled for durability.
- 115V or 230V Supplied with an 8-foot, 115V cord set
- Assembled in the USA
- Five-year limited warranty

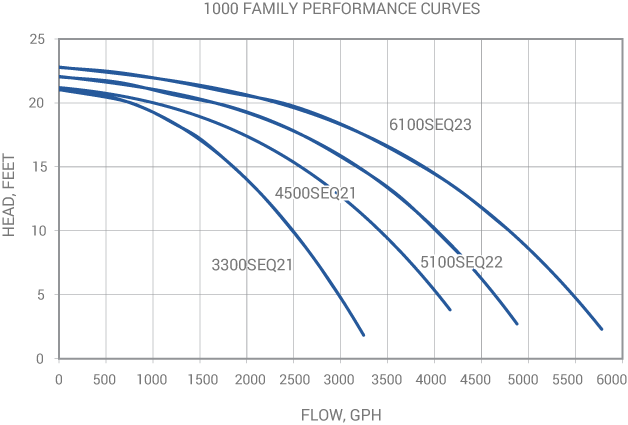

| Model | Inlet | Discharge | Max Flow (GPH) | Max Head (Ft.) | Max Power (Watts) | Max Current (Amps) | Volts | Motor HP | Motor Enclosure | Impeller |
| 3300SEQ21 |
1.5" |
1.5" | 3300 | 21' | 206 | 2.36 | 115/230 | 1/8 | TEFC | 4 |
| 4500SEQ21 |
1.5" | 1.5" | 4500 | 21' | 250 | 2.69 | 115/230 | 1/6 | TEFC | 5 |
| 5100SEQ22 | 1.5" | 1.5" | 5100 | 22' | 293 | 3.03 | 115/230 | 1/4 | TEFC | 6 |
| 6100SEQ23 | 1.5" | 1.5" | 6100 | 23' | 366 | 3.03 | 115/230 | 1/3 | TEFC | 7 |
Instruction Manual
File Size: 290.78 kb
Sequence pumps are manufactured to quality standards that meet the most stringent investment requirements. Sequence is the leader in high efficiency, external pumps for water features and koi ponds. From the compact model 750 and workhorse model 1000 to the self-priming, integrated basket strainer and power series models, there is a pump for every application. All units are assembled and pre-tested at the Colorado manufacturing facility.
