An Adjustable Pump Built for Ponds That Change With the Season

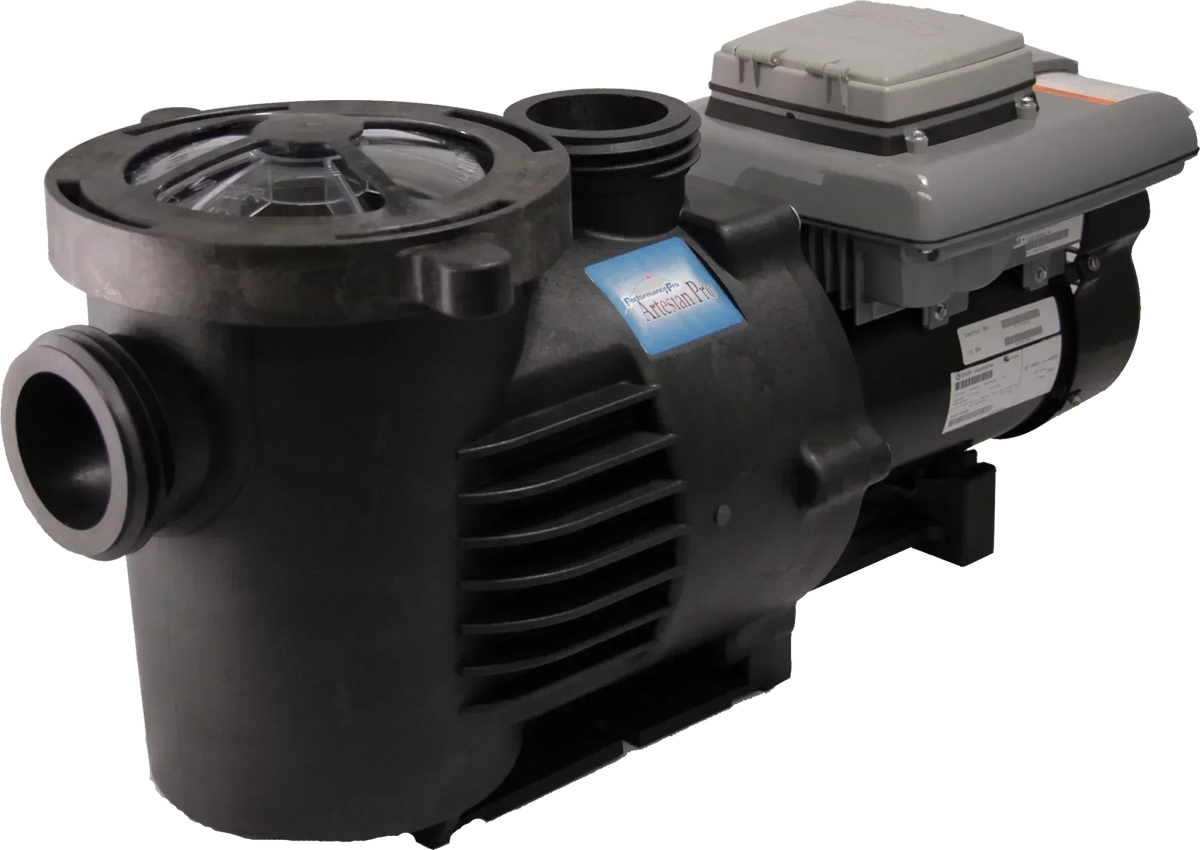

The PerformancePro ArtesianPro Dial-A-Flow provides unmatched versatility. These are durable external pump units for any water system.
These self-priming pumps use a permanent magnet drive. This design ensures high efficiency for any variable speed external pump setup.
The PerformancePro ArtesianPro Dial-A-Flow line includes six configurations. Models come in 1.6HP, 2.7HP, and 3.45HP for various yards.
A three-phase motor lets you dial the flow rate up or down. You no longer need one fixed speed year-round in your backyard pond system.
Ponds need high waterfall flow in July but less in January. Lowering output during winter helps you save on monthly electric costs.
Choose High Flow or High Head impellers. This ensures the ArtesianPro DAF pump matches your specific pond layout perfectly and safely.
Key Features of PerformancePro ArtesianPro Dial-A-Flow Pumps
Motor and Efficiency
The three-phase motor is totally enclosed and fan-cooled. This protects it from weather wear that ruins lower-quality pond pump models.
Since the speed is variable, you aren't stuck with "on" or "off." Lower the flow in cool months to drop operating costs quite easily.
Programmable Timer and Speed Control
An LCD backlight display and integrated timer sit right on the pump. The internal clock supports seven unique speed presets for daily use.
Set a schedule for stronger flow by day and reduced flow overnight. The pump handles the switching automatically for your convenience.
Self-Priming Design and Fittings
Both HF and HH versions are true self-priming pumps with 3" ports. They offer 2" or 3" tailpieces for secure, leak-free pipe connections.
An easy access lid and large strainer basket keep debris out. This makes cleaning simple for every owner of this external pump system.
Choosing the Right Model
Horsepower indicates how much head pressure and flow you can push. These pumps align by motor sizes for installation in your yard:
| Model | HP Range |
|---|---|
| AP1.6-HF/HH-DAF | 0 - 1.65 HP |
| AP2.7-HF/HH-DAF | 0 - 2.7 HP |
| AP3.45-HF/HH-DAF | 0 - 3.45 HP |
High Flow vs. High Head: Which Impeller Do You Need
A Dial-A-Flow High Flow Pump is for high volume. A Dial-A-Flow High Head Pump is for high vertical lift or very long pipe runs.
These are not interchangeable once your system is designed. Choose the right impeller to maintain the best High RPM performance levels.
Installation and Support
The PerformancePro ArtesianPro Dial-A-Flow features a Neptune/US Motor and a 1-year warranty. It is proudly manufactured in the USA.
Choose the 2" or 3" tailpiece to match your plumbing. Both sizes are available for every model in this high-performance pump line.
PerformancePro Dial-A-Flow Pumps Manual
ArtesianPro 'High Flow' DAF Series
| Model | AP1.6-HF-DAF | AP2.7-HF-DAF | AP3.45-HF-DAF |
|---|---|---|---|
| Datasheet | Click to view | Click to view | Click to view |
| Design Type | Self Prime | Self Prime | Self Prime |
| Max Flow (GPM) | 204 | 268 | 310 |
| Max Head (FT) | 41.9' | 58.6' | 59.7' |
| Max Power (W) | 1500 | 2510 | 3140 |
| Impeller Number | AP3/4L | AP3/4L | AP1L |
| Trim (IN) | 3.8 | 4.225 | 4.25 |
| Motor Power (HP) | 1.65 | 2.7 | 3.45 |
| Enclosure | TEFC | TEFC | TEFC |
| Speed (RPM) | 3450-1725 | 3450-1725 | 3450-1725 |
| Low Volts (V) | 115 | - | - |
| Low Volt Amps (A) | 13.6 | - | - |
| High Volts (V) | 230 | 230 | 230 |
| High Volt Amps (A) | 6.8 | 11.1 | 14 |
| Frequency (HZ) | Variable | Variable | Variable |
| Phase | 1 | 1 | 1 |
| Inverter Capable | On Board | On Board | On Board |
| Weight (Lbs) | 44.3 | 49.3 | 51.3 |
| Height (IN) | 16.85" | 16.85" | 16.85" |
| Length (IN) | 30.98" | 30.98" | 31.3" |
| Width (IN) | 11.25" | 11.25" | 11.25" |
| Port (IN) | 3" | 3" | 3" |
| Housing Material | PP | PP | PP |
| Seal Material | C/Cer | C/Cer | C/Cer |
| Tested Fluid | H₂O | H₂O | H₂O |
ArtesianPro 'High Head' DAF Series
| Model | AP1.6-HH-DAF | AP2.7-HH-DAF | AP3.45-HH-DAF |
|---|---|---|---|
| Datasheet | Click to view | Click to view | Click to view |
| Design Type | Self Prime | Self Prime | Self Prime |
| Max Flow (GPM) | 153 | 207 | 225 |
| Max Head (FT) | 67' | 79.2' | 83.5' |
| Max Power (W) | 1500 | 2290 | 2800 |
| Impeller Number | AP1H | AP2H | AP3H |
| Trim (IN) | 4.65 | 4.8 | 5 |
| Motor Power (HP) | 1.65 | 2.7 | 3.45 |
| Enclosure | TEFC | TEFC | TEFC |
| Speed (RPM) | 3450-1725 | 3450-1725 | 3450-1725 |
| Low Volts (V) | 115 | - | - |
| Low Volt Amps (A) | 13.6 | - | - |
| High Volts (V) | 230 | 230 | 230 |
| High Volt Amps (A) | 6.8 | 11.1 | 14 |
| Frequency (HZ) | Variable | Variable | Variable |
| Phase | 1 | 1 | 1 |
| Inverter Capable | On Board | On Board | On Board |
| Weight (Lbs) | 44.3 | 49.3 | 51.3 |
| Height (IN) | 16.85" | 16.85" | 16.85" |
| Length (IN) | 30.98" | 30.98" | 31.3" |
| Width (IN) | 11.25" | 11.25" | 11.25" |
| Port (IN) | 3" | 3" | 3" |
| Housing Material | PP | PP | PP |
| Seal Material | C/Cer | C/Cer | C/Cer |
| Tested Fluid | H₂O | H₂O | H₂O |
