The Eco-Series Waterfall Diffuser is a fast and easy way to create professional looking waterfalls. Its low profile makes it easy to hide and its superior design makes it strong enough to place large stone on top of it. The original..and still the best!
Key Features:
- A fast and easy way to create professional looking waterfalls
- Ideal for use at beginning of streams and in block walls, pools and formal fountains
- Super strong vertical rib design creates a nearly indestructible diffuser
These popular spillways are available in four widths: 16″, 23″, 32″ and 46″

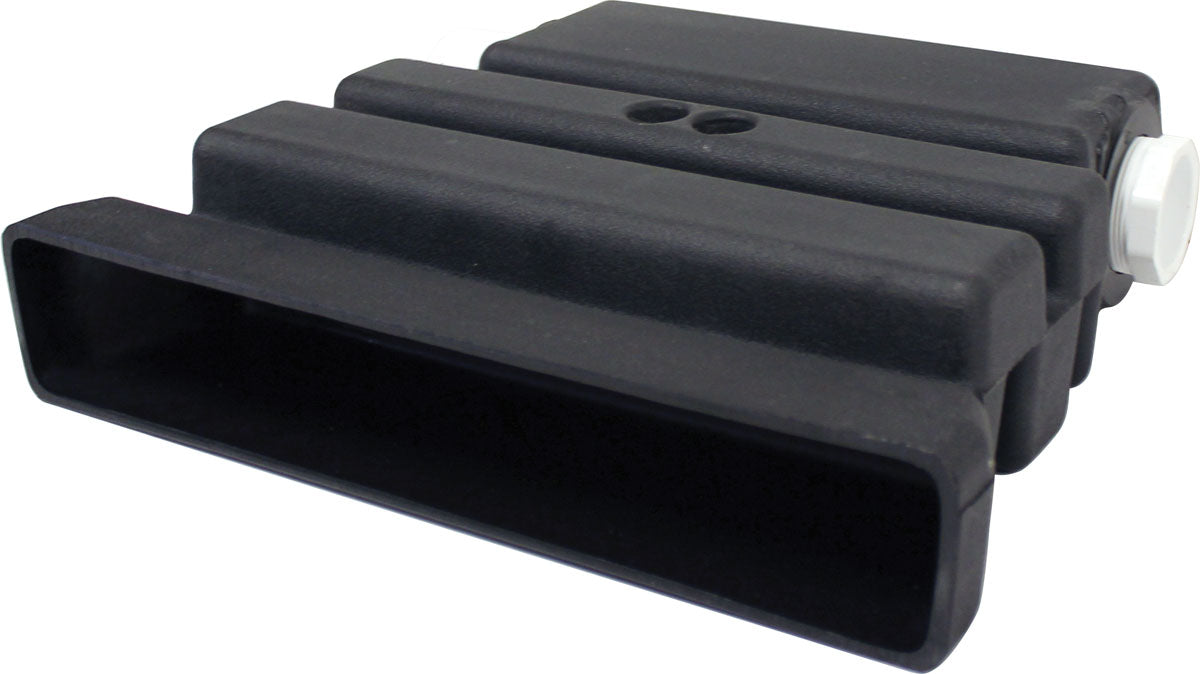

- UWD16 16" Eco-Series Waterfall Diffuser
- 16″ wide – can be used in multiples for wider applications
- Recommended flow rate of 1,000 to 4,000 GPH
- Dual 2″ inlets
- Measures 26″ wide x 14″ deep x 3 1/2″ tall

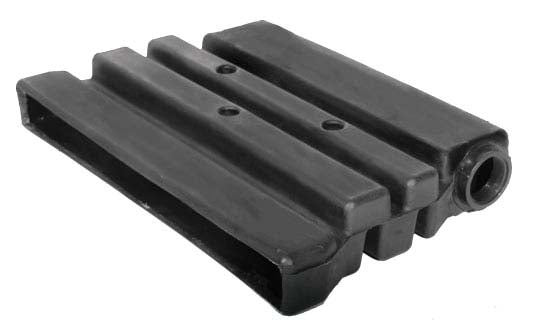

- UWD23 23" Eco-Series Waterfall Diffuser
- 23″ wide – can be used in multiples for wider applications
- Recommended flow rate of 1,500 to 6,000 GPH
- Dual 2″ inlets
- Measures 23″ wide x 14″ deep x 3 1/2″ tall

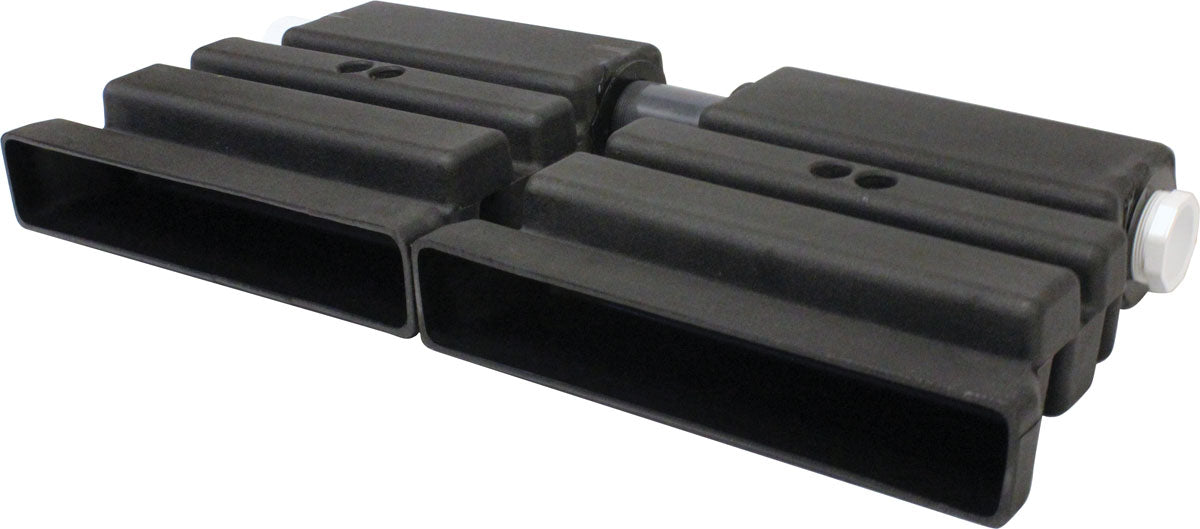

- UWD32 32" Eco-Series Waterfall Diffuser
- 32″ wide (dual 16″ units) can be used in multiples for wider applications
- Recommended flow rate of 2,000 to 8,000 GPH
- Flows over 6,000 GPH should be plumbed from both sides
- Dual 2″ inlets
- Measures 32″ wide x 14″ deep x 3 1/2″ tall

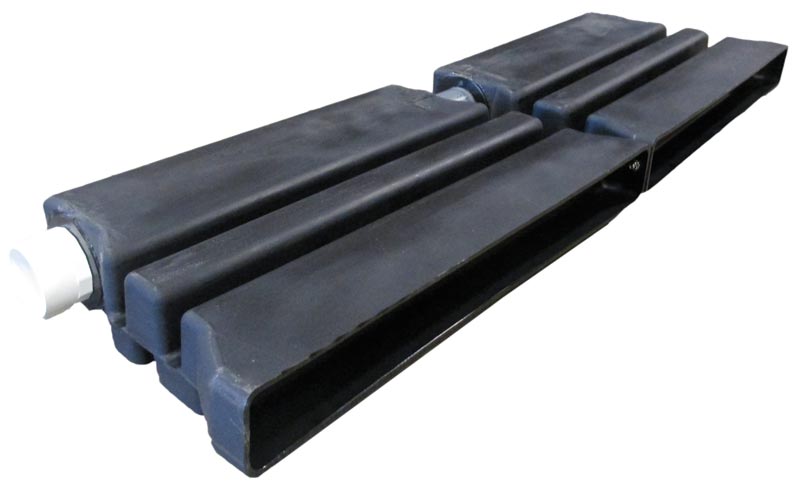

- UWD46 46" Eco-Series Waterfall Diffuser
- 46″ wide (dual 23″ units) can be used in multiples for wider applications
- Recommended flow rate of 3,000 to 12,000 GPH
- Flows over 6,000 GPH should be plumbed from both sides
- Dual 2″ inlets
- Measures 46″ wide x 14″ deep x 3 1/2″ tall
Product Manual
File Size: 228.87 kb
