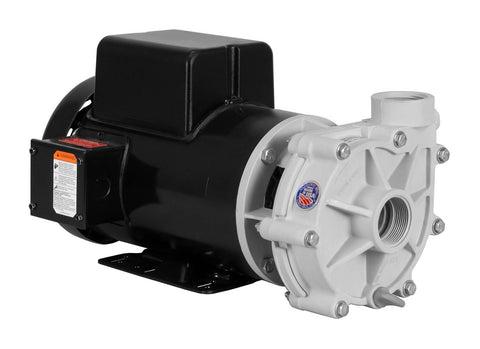

1.5"Equipped for massive flow and applications that demand high performance, we offer the Sequence Power Series with abundant flow and pressure.
Five-year limited warranty.
|
Model
|
Inlet
|
Discharge
|
Max Flow (GPH)
|
Max Head (Ft.)
|
Max Power
|
Max Current (Amps)
|
Volts
|
Motor HP
|
Motor Enclosure
|
Impeller
|
|
8500PWR55
|
1.5"
|
1.5"
|
8500
|
55'
|
1385
|
5.38
|
115/230
|
1.5
|
TEFC
|
6T-3.85"
|
|
9200PWR69
|
1.5"
|
1.5"
|
9200
|
69'
|
1744
|
6.82
|
115/230
|
2
|
TEFC
|
6T-4.25"
|
|
11000PWR72
|
1.5"
|
1.5"
|
11000
|
72'
|
2056
|
8.58
|
115/230
|
2
|
TEFC
|
7T-4.21"
|
Installation Manual
File Size: 215.75 kb
Sequence is the leader in high efficiency, external pumps for water features and koi ponds. From the compact model 750 and workhorse model 1000 to the self-priming, integrated basket strainer and power series models, there is a pump for every application. All units are assembled and pre-tested at their Colorado manufacturing facility.
