Key Features
- Direct Drive pumps are perfect for demanding medium head, high-volume applications

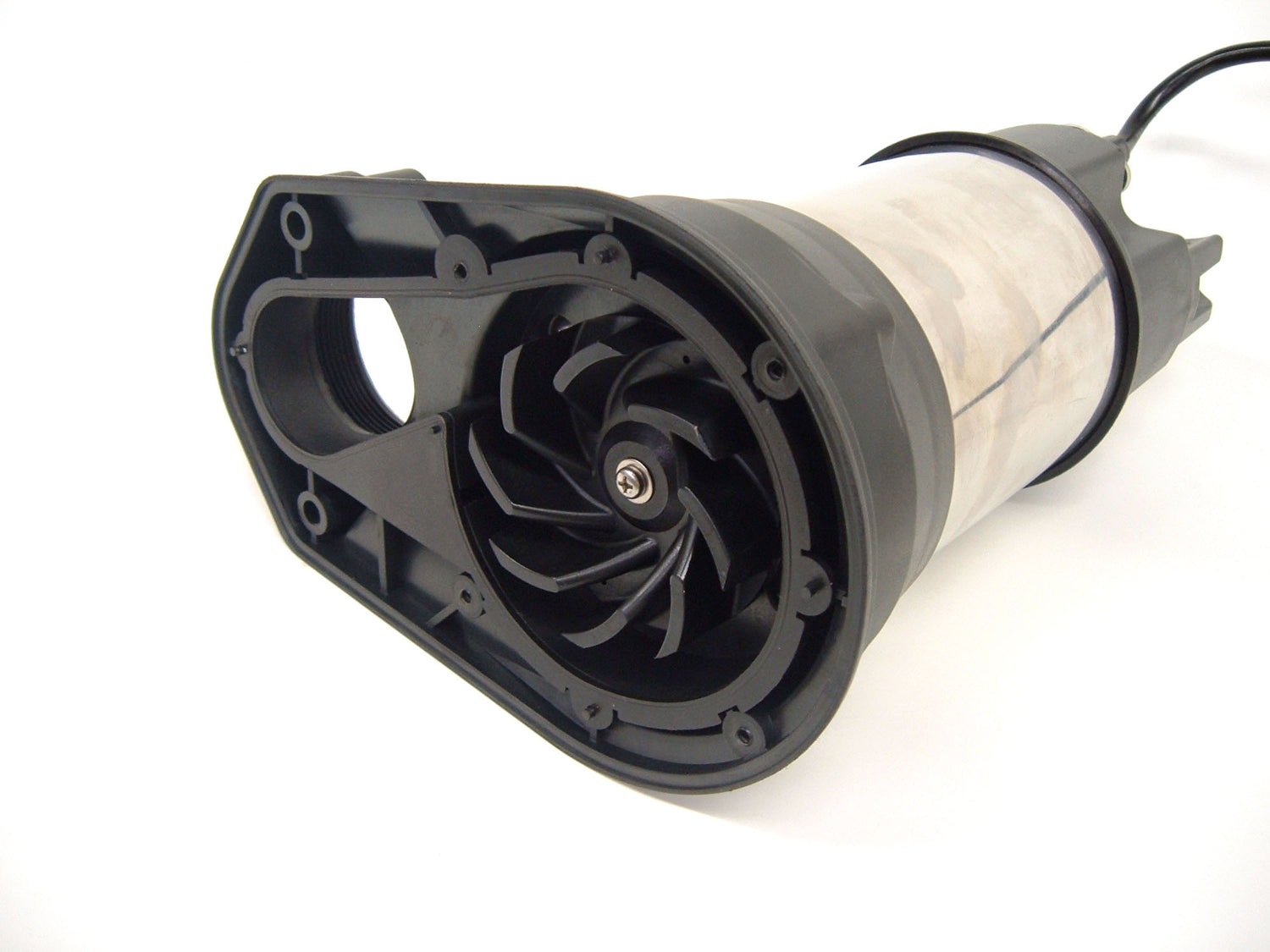

- Atlantic PAF-Series pumps feature energy efficient direct drive motors, double silicone carbide mechanical seals and fiber-reinforced vortex impeller to ensure dependable, long lasting service
- Overload and thermal protection shuts down pump before overheating can cause damage
- Stainless steel and high impact FRP composite housings are rugged and lightweight, for easier servicing and long life
- Removable intake screen coverts pump from clean water in skimmers to true 1¼" solids handling capacity in ponds
Product Manual
File Size: 765.35 kb
| MODEL | MOTOR (HP) | VOLTS | AMPS | WATTS | OUTLET | CORD | DIMENSIONS (L X W X H) INCHES | OUTLET FITTING | WARRANTY |
|
PAF-20
|
1/4
|
115
|
3.5
|
360
|
2" FIPT
|
20'
|
9"X6"x14"
|
2" Insert | 2-Years |
|
PAF-25
|
1/3
|
115
|
5
|
545
|
2" FIPT
|
20'
|
9"X6"X14.5"
|
2" Insert | 2-Years |
|
PAF-40
|
1/2
|
115
|
6
|
650
|
2" FIPT
|
20'
|
9"X6"X15"
|
2" Insert | 2-Years |
|
PAF-75
|
1
|
115
|
8.5
|
900
|
2" FIPT
|
20'
|
9"X6"X16"
|
2" Insert | 2-Years |
*This is a special order item, it may take longer than usual processing time.
