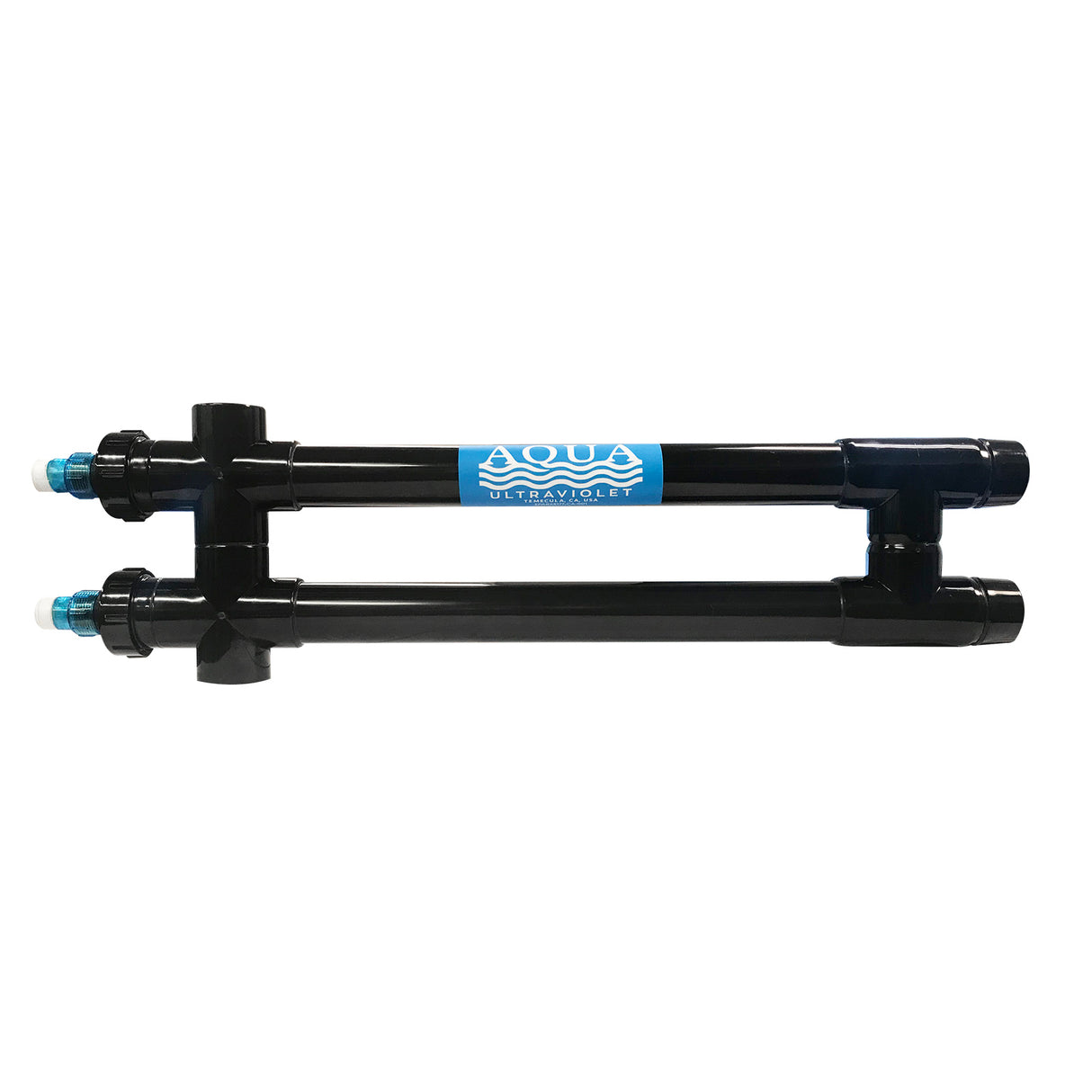

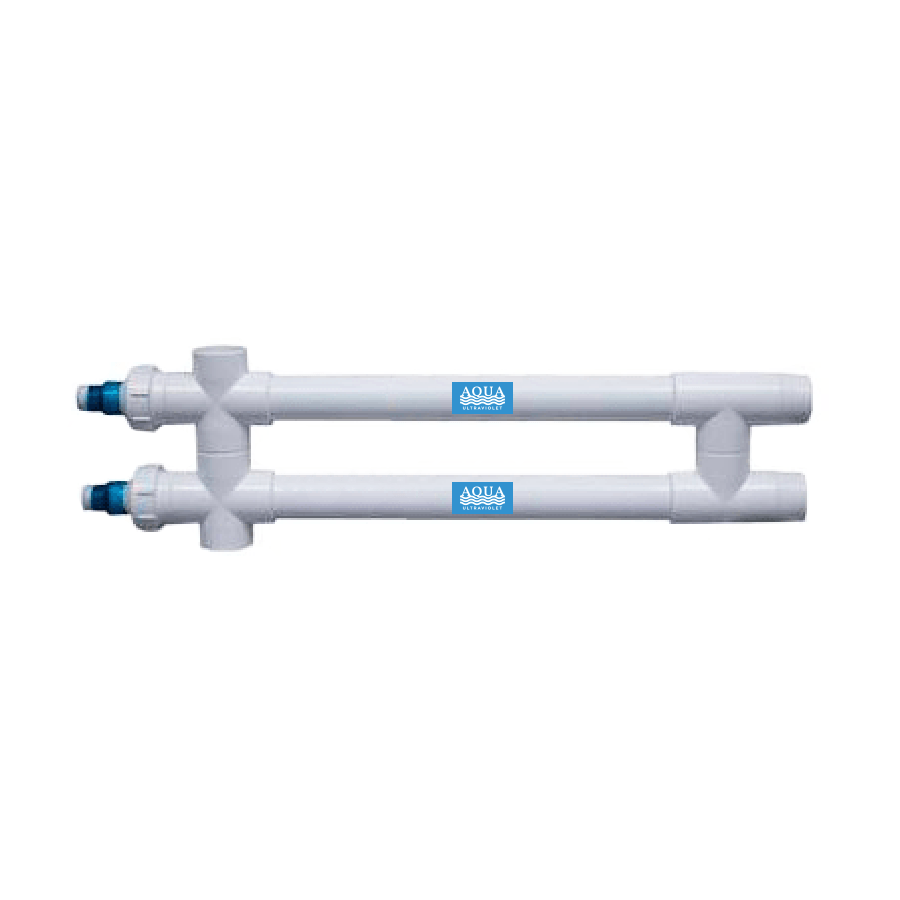

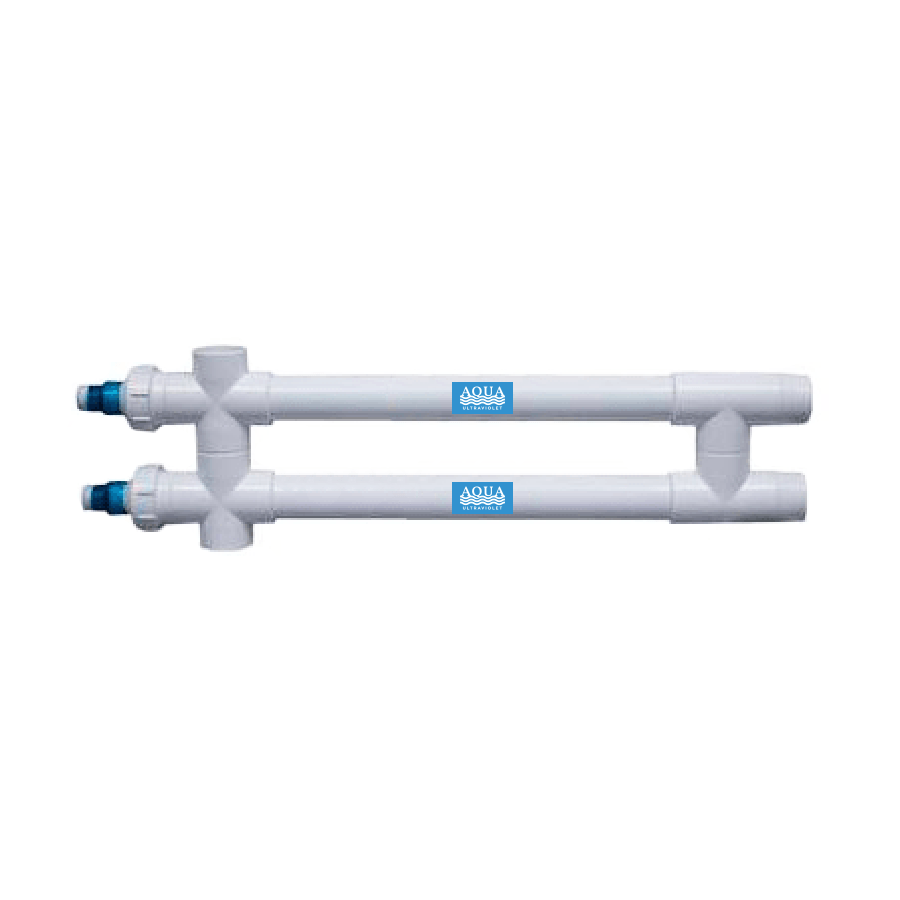

Aqua Ultraviolet - Classic UV 80 Watt Units - 2 Inches - 2 Lamps

Dimensions for 2" Unit: 36-7/8” x 3-3/4” x16-1/2”

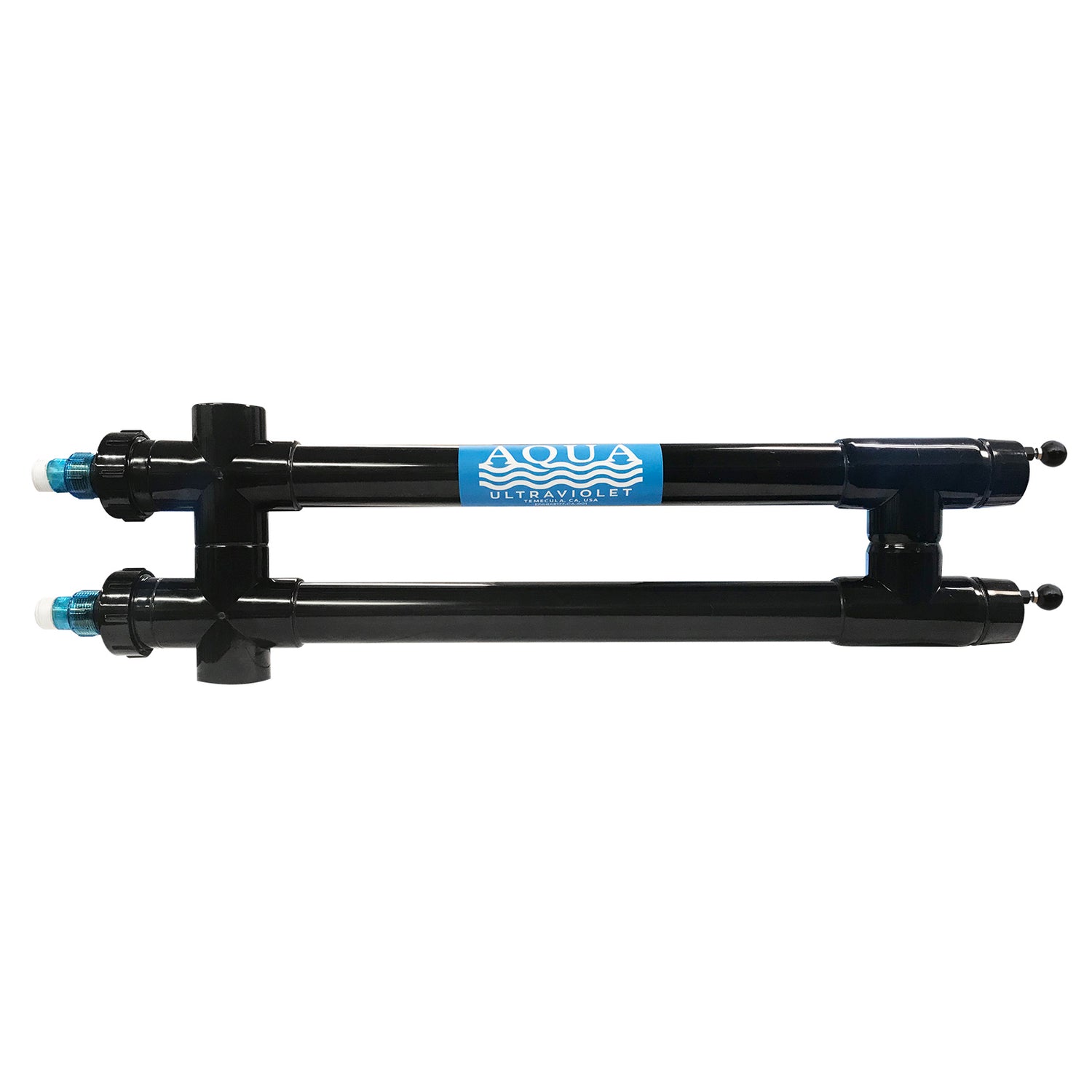

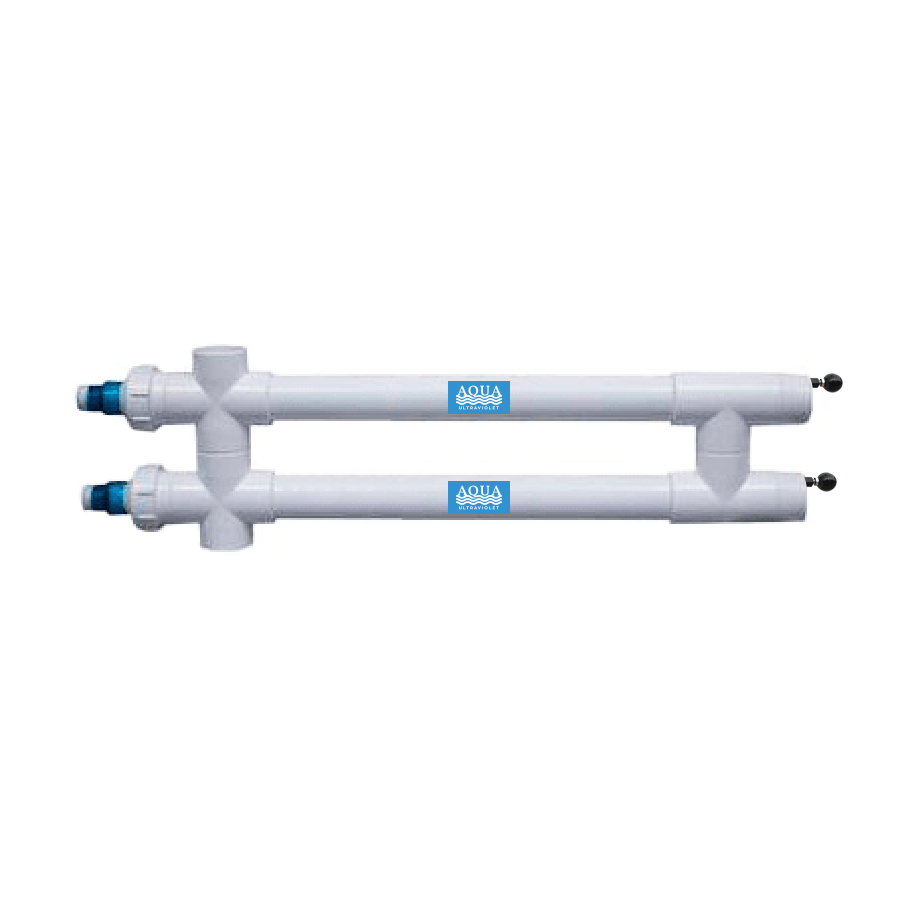

Dimensions for 2" Unit with Wiper: 38-3/4” x 3-3/4” x 16-1/2”
Dimensions for 3" Unit: 36-7/8” x 5-1/4” x 25”
Dimensions for 3" Unit with WIper: 38-3/4” x 5-1/4” x 25”
Wiper Clearance: 17"

2

0.85

Freshwater: 2,200 – 4,400 Gallons
Saltwater: 600 Gallons

at 30,000 µw/cm2 (EOL) GPH: 3,678 (Max Flow Rate)
at 45,000 µw/cm2 (EOL) GPH: 2,452
at 60,000 µw/cm2 (EOL) GPH: 1,839
at 75,000 µw/cm2 (EOL) GPH: 1,471
at 90,000 µw/cm2 (EOL) GPH: 1,226 (Min Flow Rate)

A UV rated in the 30,000 or 45,000 µw/cm2 (EOL) is ideal for the
reef environment. UV’s used at higher kill rates will destroy the
planktonic food supply for the reef.

(No reef or live rock) A UV rated in the 75,000 or 90,000 µw/cm2 (EOL)
will be the most effective at controlling fish disease. All UV dosages
are calculated at the end of lamp life (14 months).

*Aqua Ultraviolet does not recommend utilizing Wipers with
Salt Water and if utilized in this manner will void warranty
on the Wiper parts.
