PROLINE WATER PUMPS W/ PROTECTIVE CAGES

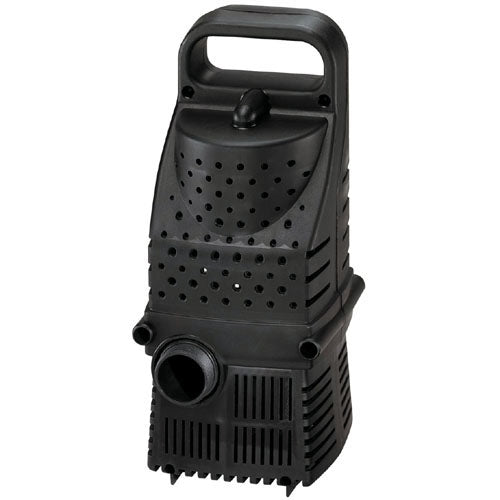

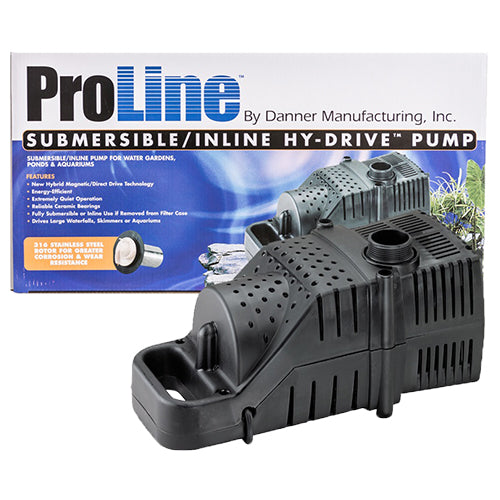

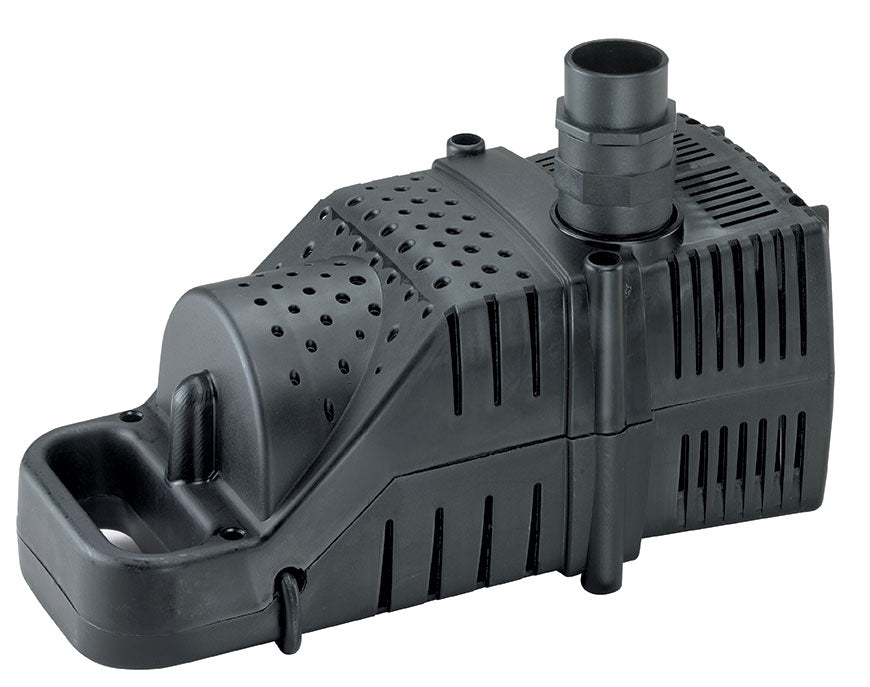

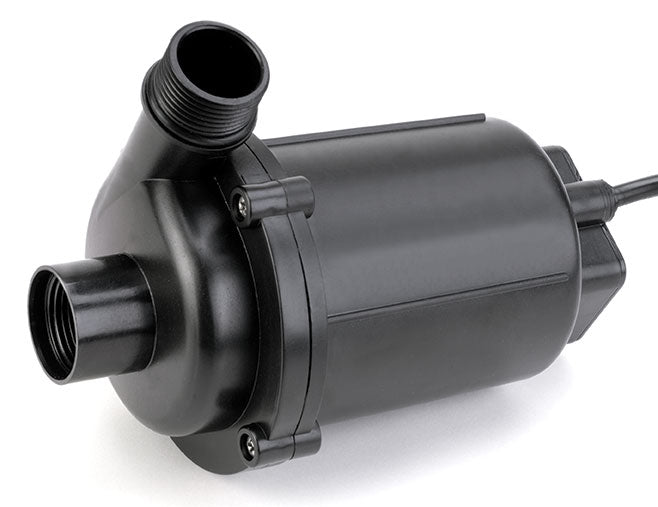

PROLINE BY PONDMASTER HY-DRIVE PUMPS are unique, high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an inline, external pumping source. Available in 1600, 2100, 2600, 3200, 4000, 4800, and 6000 GPH capacities.
FEATURES
- Powerful, Efficient Hybrid Magnetic Induction Motor
- High-Efficiency Vortex Impeller
- Whisper Quiet Continuous Duty Operation
- Oil-Free / Fish Safe
- Convenient Carry Handle
- Submersible or Inline Operation
- Threaded Female Couplings and Fittings Included
- Extra-Long Clog Resistant Filter Screen
- Can be positioned vertically or horizontally
- 20' Grounded Power Cord
- 3 Year Limited Warranty
Pondmaster Proline Pump Manual
| 1600 HY-DRIVE ITEM# 02663 |
2100 HY-DRIVE ITEM# 02665 |
|---|---|
| Max. Watts/Amps: 120/1.0 | Max. Watts/Amps 190/1.5 |
| Volts: 120 / 60Hz | Volts: 120 / 60Hz |
| Inlet 1" | Inlet 1" |
| Outlet 1" | Outlet 1" |
| Cord Length 20' | Cord Length 20' |
| Dimensions (L x W x H) 13" x 6 3/8" x 6" |
Dimensions (L x W x H) 13" x 6 3/8" x 6" |
| 2600 HY-DRIVE ITEM# 02667 |
3200 HY-DRIVE ITEM# 02680 |
|---|---|
| Max. Watts/Amps 270/2.2 | Max. Watts/Amps 160/1.5 |
| Volts: 120 / 60Hz | Volts: 120 / 60Hz |
| Inlet 1" | Inlet 1½" |
| Outlet 1" | Outlet 1½" |
| Cord Length 20' | Cord Length 20' |
| Dimensions (L x W x H) 15" x 7 1/4" x 7 1/4" |
Dimensions (L x W x H) 15" x7 1/4" x 7 1/4" |
| 4000 HY-DRIVE ITEM# 02675 |
4800 HY-DRIVE ITEM# 02670 |
|---|---|
| Max. Watts/Amps 200/1.85 | Max. Watts/Amps 280/2.15 |
| Volts: 120 / 60Hz | Volts: 120 / 60Hz |
| Inlet 1½" | Inlet 1½" |
| Outlet 1½" | Outlet 1½" |
| Cord Length 20' | Cord Length 20' |
| Dimensions (L x W x H) 15" x 7 1/4" x 7 1/4" |
Dimensions (L x W x H) 15" x 7 1/4" x 7 1/4" |
| 6000 HY-DRIVE ITEM# 02683 |
|---|
| Max. Watts/Amps 675/5.5 |
| Volts: 120 / 60Hz |
| Inlet 2" |
| Outlet 2" |
| Cord Length 20' |
| Dimensions (L x W x H) 15 1/2" x 7" x 8" |
| PM NAME | PM ITEM# | Watts | Flow at 1' | Flow at 3' | Flow at 5' | Flow at 7' | Flow at 10' | Flow at 15' | Flow at 20' | Flow at 25' | Shut-Off (Feet) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PLHD 1600 | 02663 | 120 | 1700 | 1575 | 1400 | 1250 | 1000 | 375 | - | - | 17' |
| PLHD 2100 | 02665 | 190 | 2075 | 1900 | 1750 | 1600 | 1300 | 850 | 300 | - | 22' 5" |
| PLHD 2600 | 02667 | 270 | 2550 | 2525 | 2450 | 2225 | 1975 | 1625 | 1250 | 300 | 26' 5" |
| PLHD 3200 | 02680 | 160 | 3300 | 2700 | 2050 | 1650 | 650 | - | - | - | 12' |
| PLHD 4000 | 02675 | 200 | 4000 | 3300 | 2700 | 2350 | 1475 | - | - | - | 13' |
| PLHD 4800 | 02670 | 280 | 5000 | 4500 | 3900 | 3150 | 2350 | 800 | - | - | 18' 5" |
| PLHD 6000 | 02683 | 675 | 5500 | 5100 | 4700 | 4200 | 3650 | 2450 | 1150 | - | 22' 5" |
