PondMaster | SKU: 02522

PondMaster - Pond-Mag Magnetic Drive Utility Pumps

Verified Buyer

$118.99

Model: 250 GPH (Item - 02522)

Model

250 GPH (Item - 02522) 350 GPH (Item - 02523) 500 GPH (Item - 02525) 700 GPH (Item - 02527) 950 GPH (Item - 02720) 1200 GPH (Item - 02722) 1800 GPH (Item - 02728) 2400 GPH (Item - 02750) 3600 GPH (Item - 02755)

Free Shipping

On orders over $149

Expert Support

PONDMASTER POND-MAG MAGNETIC DRIVE WATER PUMPS

PONDMASTER POND-MAG 250 to 3600 SERIES PUMPS have been designed to handle virtually any application where water has to be moved. They've been fulfilling the needs of professionals and consumers for decades with quiet, efficient and reliable 24/7 performance. They feature a magnet impeller assembly and an epoxy encased power unit ensuring that water never gets contaminated with harmful oils or chemicals. Pondmaster Pond-Mag® pumps are perfect for all pond environments

FEATURES

5 Year Limited Warranty

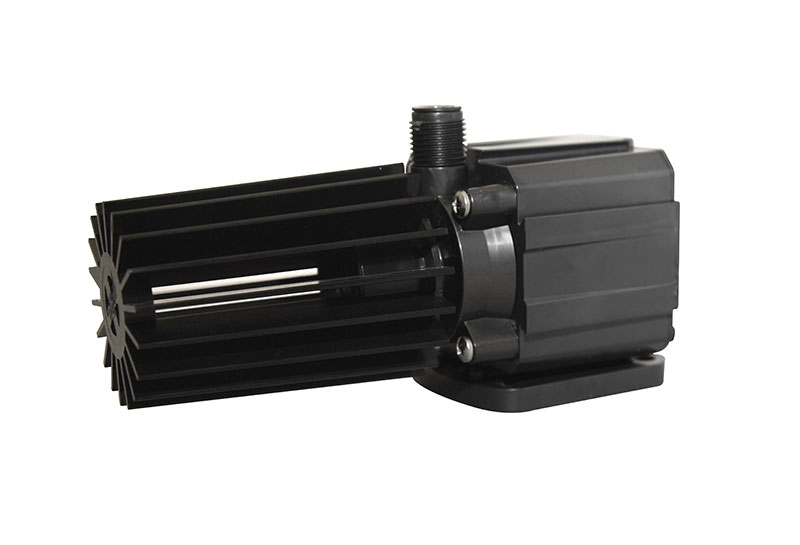

Rigid Pre-Filter Included
Ceramic Shaft
18' Grounded Power Cord
Operates Submerged or Inline
UL/CUL Certified

PondMaster PM250-PM700 Pump Manual

PondMaster PM950-PM1800 Pump Manual

PondMaster PM2400-PM3600 Pump Manual

SPECIFICATION

PM NAME	PM ITEM #	Watts	Flow at 1'	Flow at 2'	Flow at 3'	Flow at 4'	Flow at 5'	Flow at 6'	Flow at 7'	Flow at 8'	Flow at 9'	Flow at 10'	Shut-Off (Feet)
PM 250	02522	24	280	230	170	130	65	25	-	-	-	-	6' 5"
PM 350	02523	35	420	375	325	280	235	190	140	90	30	-	10' 4"
PM 500	02525	45	525	450	400	350	300	235	200	150	95	-	10' 6"
PM 700	02527	70	655	605	565	530	450	420	325	275	200	110	11' 8"

PM NAME	PM ITEM #	Watts	Flow at 1'	Flow at 2'	Flow at 3'	Flow at 4'	Flow at 5'	Flow at 6'	Flow at 7'	Flow at 8'	Flow at 9'	Flow at 10'	Flow at 15'	Shut-Off (Feet)
PM 950	02720	93	1010	930	900	840	770	710	650	600	530	475	-	13' 7"
PM 1200	02722	110	1190	1130	1065	940	900	840	795	730	630	570	-	13' 7"
PM 1800	02728	145	1300	1240	1170	1130	1040	1015	925	880	810	775	470	16' 6"
PM 2400	02750	237	2400	2350	2190	2030	1860	1730	1645	1510	1395	1380	830	17' 1"
PM 3600	02755	256	3060	2885	2775	2670	2595	2480	2365	2295	2205	2170	1615	22' 6"

PM 250 - ITEM# 02522	PM 350 - ITEM# 02523
Max. Watts/Amps: 24/0.4	Max. Watts/Amps: 35/0.6
Volts: 120 / 60Hz	Volts: 120 / 60Hz
Inlet: 1/2" FPT	Inlet: 1/2" FPT
Outlet: 1/2" MPT	Outlet: 1/2" MPT
Cord Length: 18'	Cord Length: 18'
Dimensions (L x W x H): 5.0" x 3.8" x 4.2"	Dimensions (L x W x H): 5.0" x 3.8" x 4.2"
PM 500 - ITEM# 02525	PM 700 - ITEM# 02527
Max. Watts/Amps: 45/0.9	Max. Watts/Amps: 70/1.6
Volts: 120 / 60Hz	Volts: 120 / 60Hz
Inlet: 1/2" FPT	Inlet: 1/2" FPT
Outlet: 1/2" MPT	Outlet: 1/2" MPT
Cord Length: 18'	Cord Length: 18'
Dimensions (L x W x H): 5.0" x 3.8" x 4.2"	Dimensions (L x W x H): 5.0" x 3.8" x 4.2"
PM 950 - ITEM# 02720	PM 1200 - ITEM# 02722
Max. Watts/Amps: 93/1.33	Max. Watts/Amps: 110/1.5
Volts: 120 / 60Hz	Volts: 120 / 60Hz
Inlet: 3/4" FPT	Inlet: 3/4" FPT
Outlet: 3/4" MPT	Outlet: 3/4" MPT
Cord Length: 18'	Cord Length: 18'
Dimensions (L x W x H): 5" x 3" x 5.25"	Dimensions (L x W x H): 6.4" x 3" x 5.25"
PM 1800 - ITEM# 02728	PM 2400 - ITEM# 02750
Max. Watts/Amps: 145/1.55	Max. Watts/Amps: 237/2.2
Volts: 120 / 60Hz	Volts: 120 / 60Hz
Inlet: 3/4" FPT	Inlet: 1" FPT
Outlet: 3/4" MPT	Outlet: 1" MPT
Cord Length: 18'	Cord Length: 18'
Dimensions (L x W x H): 6.4" x 3" x 5.25"	Dimensions (L x W x H): 7.25" x 4.0" x 6"
PM 3600 - ITEM# 02755
Max. Watts/Amps: 256/3.0
Volts: 120 / 60Hz
Inlet: 1" FPT
Outlet: 1" MPT
Cord Length: 18'
Dimensions (L x W x H): 7.25" x 4.0" x 6"
