EasyPro SMF10000 Skid Mount Filtration System

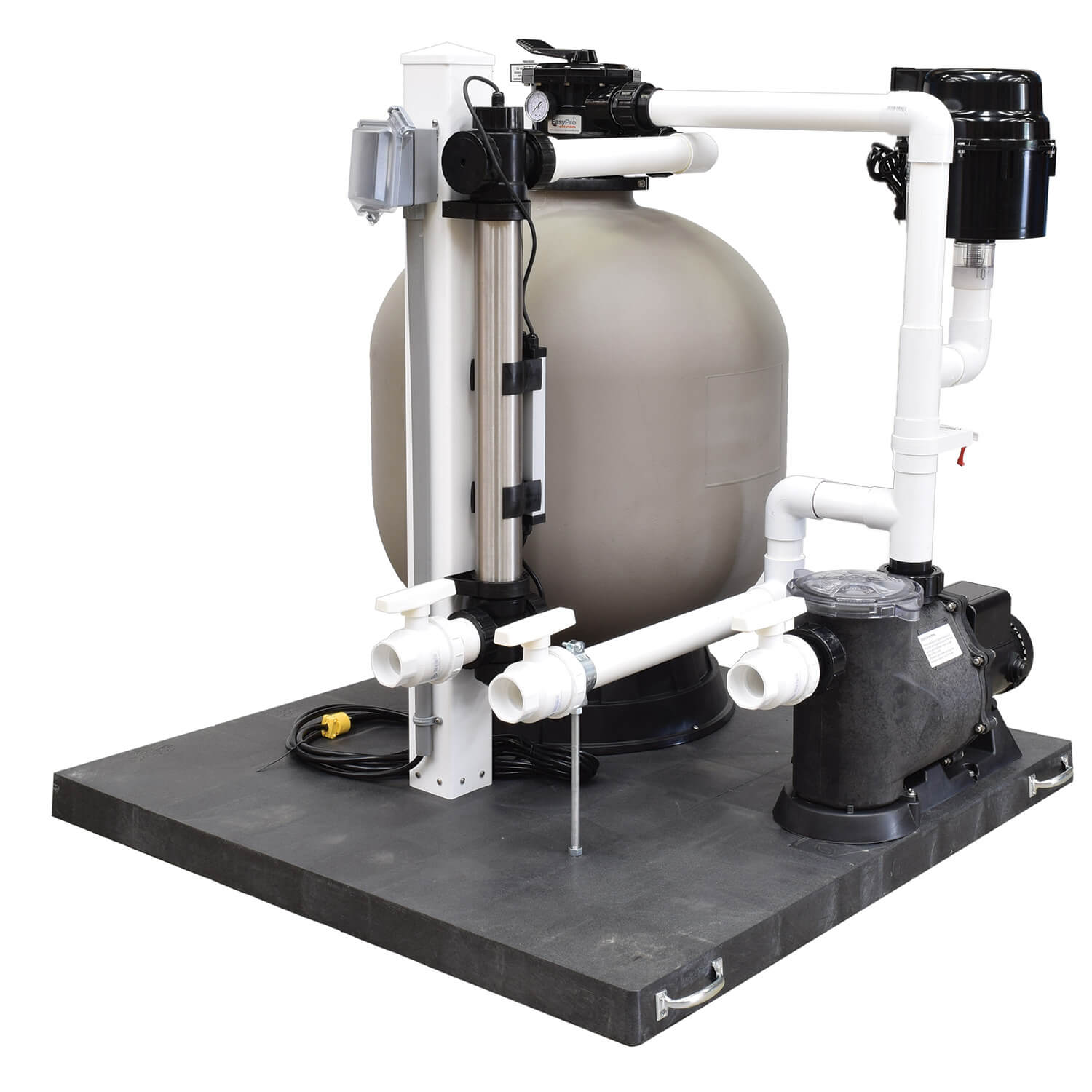

Deluxe skid mounted filtration systems offer complete filtration for water gardens, koi ponds, hybrid ponds and fish systems. A pressurized bead filter, external self-priming pump and UV clarifier pre-plumbed and ready to install as a “plug and go” pond filtration system. Four sizes available for 1,800 to 10,000 gallon ponds.

Key Features

• Pre-assembled and ready to install pond filter system
• Plumbing complete with unions at connections for future maintenance
• Strong polyethylene filter body with six position control head
• Includes Ultimate Tube Media – high flow rate media creates very little back pressure
• Energy efficient self-priming external pump
• Includes blower upgrade option
• Electrical post with 115v power outlet and 15′ power cord for easy “plug and go” installation
• Plumbing includes a 2" valved bypass line around filter system
• Note: Actual Skid may differ from image of kit system

Additional Information

• Dimensions: 50" x 50" x 50" tall
• Pond Size: up to 10,000 gallons
• Inlet: 2"
• Filter: PBF10000
• Pump Warranty: 3 year
• UV Filter: EPUV75
• Voltage: 115
• Amps: 5.0 (pump)
• Watts: 504 watts (pump)
• Outlet: 2"
• UV Watts: 75 watts
• Weight: 115 Lbs.
• Pump: EXP7800

Skid Mount Filtration Instructions
