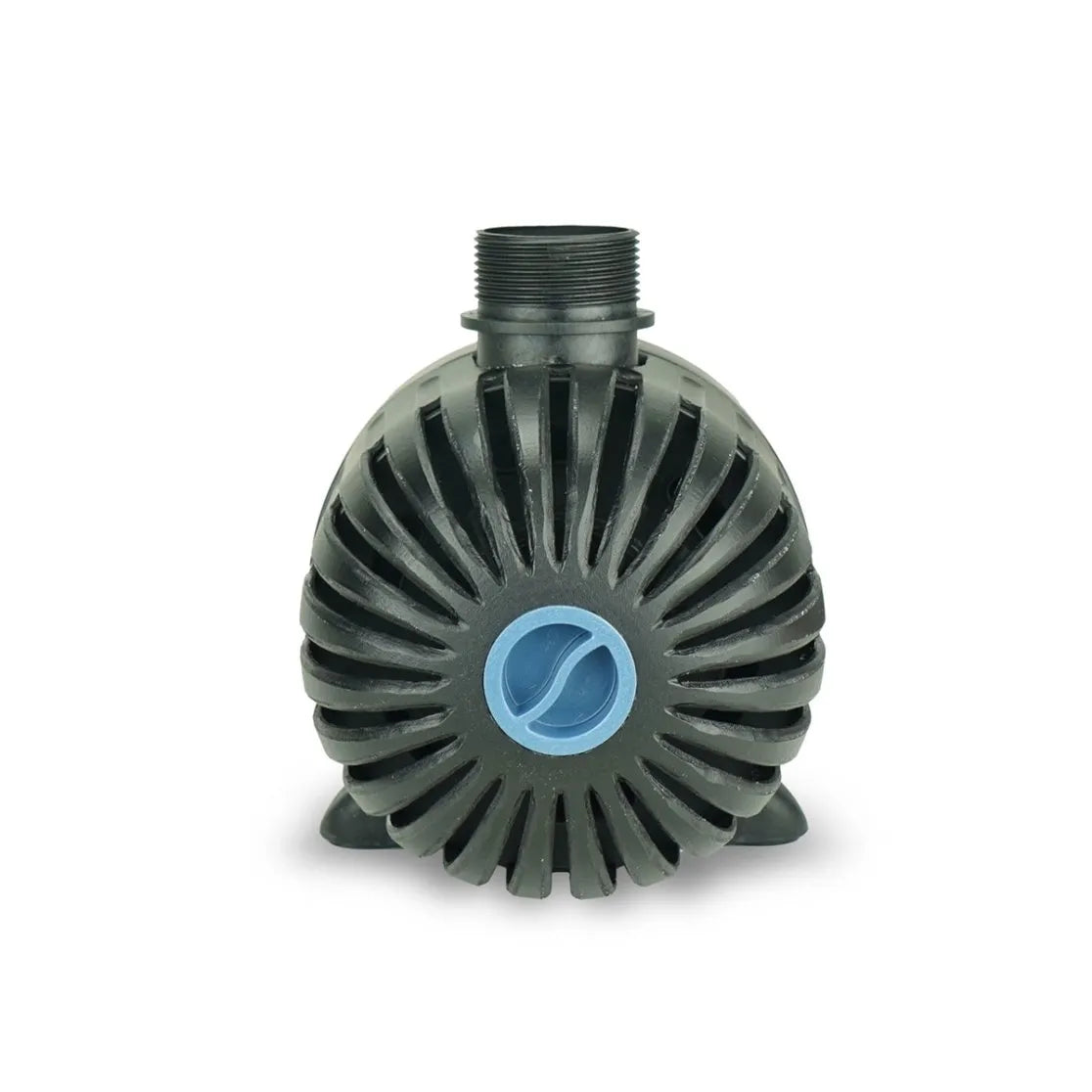

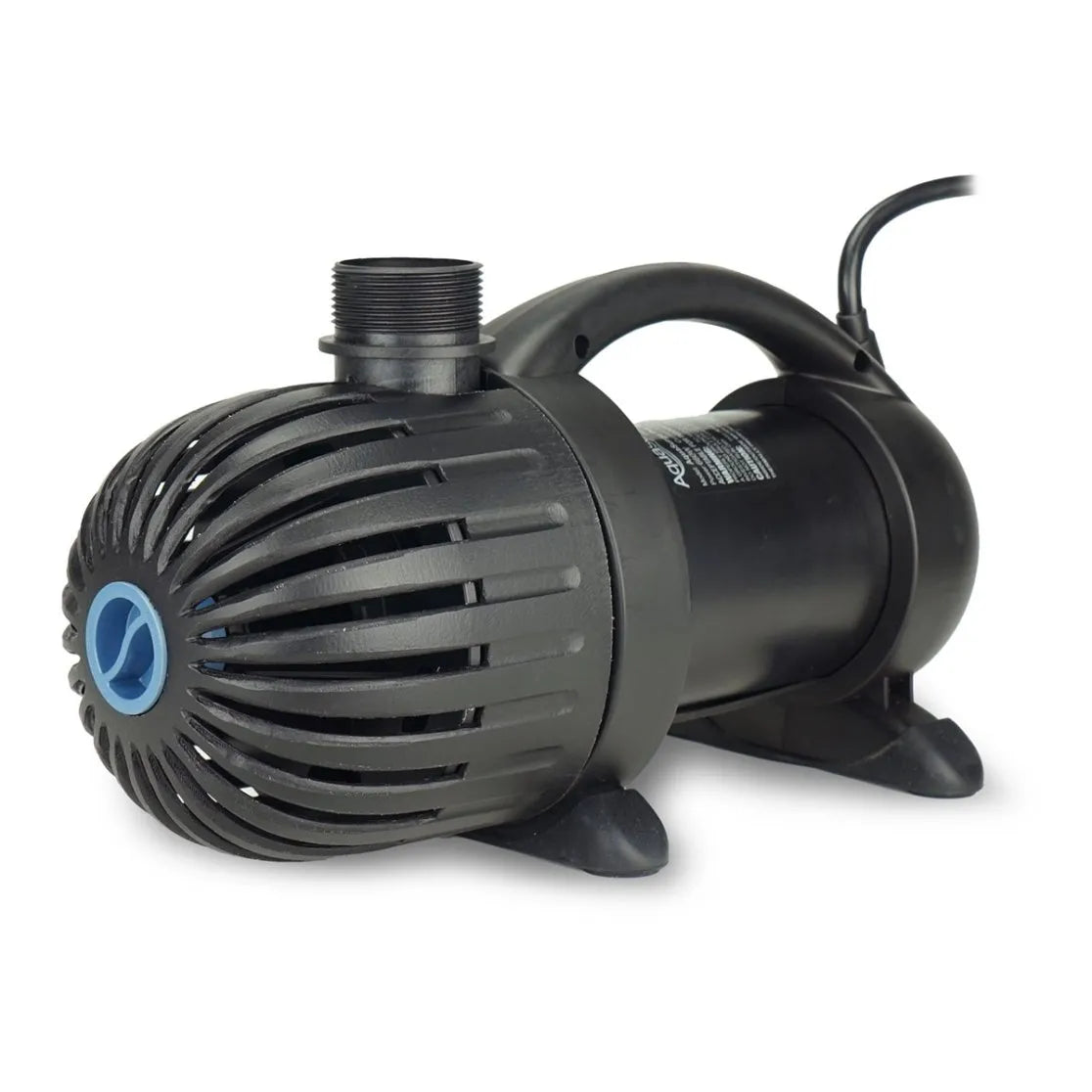

Aquascape Aquasurge Pond Pumps

Product Overview

Aquascape AquaSurge Pond Pumps stand as the gold standard in submersible asynchronous waterfall and skimmer pumps, purpose-built for koi ponds, pondless waterfalls, and all water feature applications. They are available in four models with flow rates of 2,000, 3,000, 4,000, and 5,000 GPH. This AquaSurge series delivers industry-leading energy efficiency, whisper-quiet operation, and years of continuous trouble-free performance.

At Puget Sound Ponds & Patio, we are an authorized Aquascape dealer and Washington State Licensed Pond Contractor (License #PUGETSP816QH) with decades of hands-on pond installation and maintenance experience. When you purchase an AquaSurge pump from us, you get more than a product; you get the expertise of professionals who install and maintain these exact pumps each and every day.

What Is the Aquascape AquaSurge Pond Pump?

The Aquascape AquaSurge Pond Pump is a submersible water garden pump with an asynchronous motor. More specifically, this pump can be used as a waterfall and skimmer pump for koi ponds, pondless waterfalls, and water garden filtration systems. Flow rates available include variations between 2,000 and 5,000 gallons per hour. It can work perfectly well both vertically and horizontally and features construction totally free from oil and corrosion with rubber feet integrated to ensure vibration-free performance. This pump is compatible with all skimmer and waterfall filter systems of Aquascape and comes with a 3-year limited warranty.

The AquaSurge operates on a different principle - it uses asynchronous motor technology, just like what you would find in industrial-grade equipment. This means it delivers higher torque at elevated head heights, much better energy efficiency, and a steady flow rate even when the pump is working hard to push water up a tall waterfall.

Key Features & Benefits

Energy Efficiency That Pays for Itself

Conventional synchronous pond pumps are famously voracious for power. The AquaSurge with its asynchronous motor technology could save pond owners hundreds of dollars a year on their electricity bills— a very real advantage for a pump that's running 24 hours a day, 365 days a year.

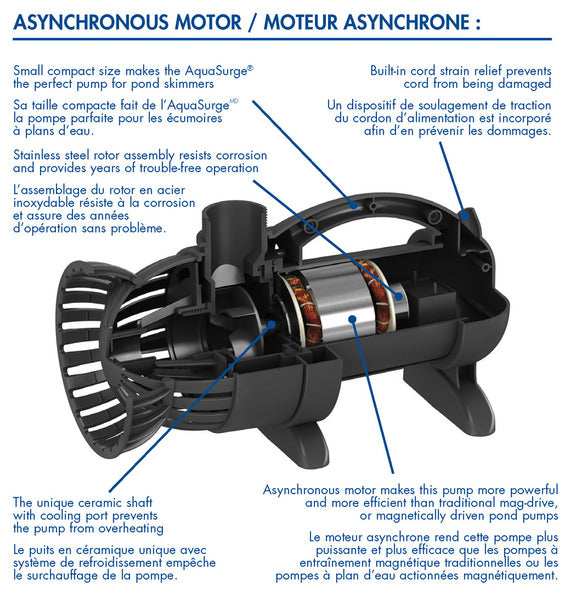

Asynchronous Motor — Superior Head-Height Performance

Most pumps lose a lot of flow as the waterfall gets taller or the pipe run gets longer. The AquaSurge has an asynchronous motor — it keeps high torque at higher head heights, making it ideal for waterfalls from 12.5 ft (AquaSurge 2000) up to 24 ft (AquaSurge 5000).

Designed for Skimmer & Waterfall Filter Systems

The AquaSurge gets engineered for use inside Aquascape skimmer boxes and waterfall filter/BioFalls units — the two most popular pond ecosystem configurations in North America. The size is pretty compact, which is 12" L × 5.5" W × 7" H — so it fits clean inside standard skimmer baskets.

Oil-Free Design — Safe for Fish & Plants

The AquaSurge uses an oil-free motor design, unlike older centrifugal pump designs. This means there is no risk of oil contamination in your pond water, keeping your koi, goldfish, and aquatic plants perfectly safe.

Corrosion-Proof: Lasts a Lifetime

Pond environments are tough places: constant water, algae, debris — and seasonal temperature swings, too. This pump is built with materials that won't corrode or rust, so it'll keep working year after year with very little maintenance.

AquaSurge can be installed in either position, as the performance is the same in both the vertical and horizontal orientations, providing maximum flexibility for the installer between skimmer and pump vaults.

Rotational ball output allows easy positioning of the discharge outlet. The unique connection can rotate the angle of the discharge outlet to any one of the angles. It is very useful especially where there are tight skimmer boxes, as it allows alignment to be made without using awkward adapter fittings.

Rubber Feet: Keep the Pump Quiet

Rubber feet come integrated, so they will completely isolate the pump from the surface on which it is placed. This eliminates the low hum as well as the vibration that is common with most other pumps. Your pond will thus stay a peaceful backyard sanctuary.

Threaded Quick-Disconnect: No More Hassle

A hose clamps free feature that allows the pump to be taken out of the skimmer for just a quick cleaning, or winter storage, and also for servicing – all with no tools and no fuss.

3-Year Limited Warranty

The AquaSurge is backed by Aquascape with a 3-year limited warranty, strength in the submersible pond pump category.

Complete Feature List

• Asynchronous motor technology for better energy efficiency and high-head performance

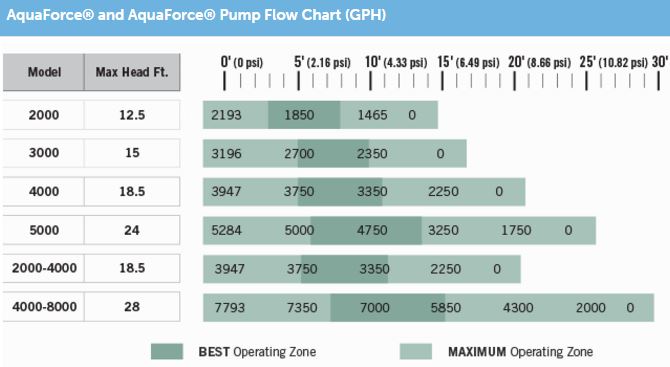

• Available in flow rates of 2,000 | 3,000 | 4,000 | 5,000 GPH
• Made for use with skimmer and waterfall/BioFalls filter systems
• Oil-free motor — safe for fish and koi, as well as aquatic plants
• Anti-corrosive and rust proof for long reliability
• Install horizontally or vertically with ease
• Ball output that allows flexible discharge
• Feet are rubberized to ensure no noise and vibration
• Maintenance is tool-free due to the quick-disconnect which is threaded and winterization
• Place it anywhere within the skimmer box; the power cord is 20 ft long
• The pump discharge diameter is 1.5" MPT
• The overall size is quite compact: 12" L × 5.5" W × 7" H
• A shaft of ceramic material with a port for cooling to prevent overheating

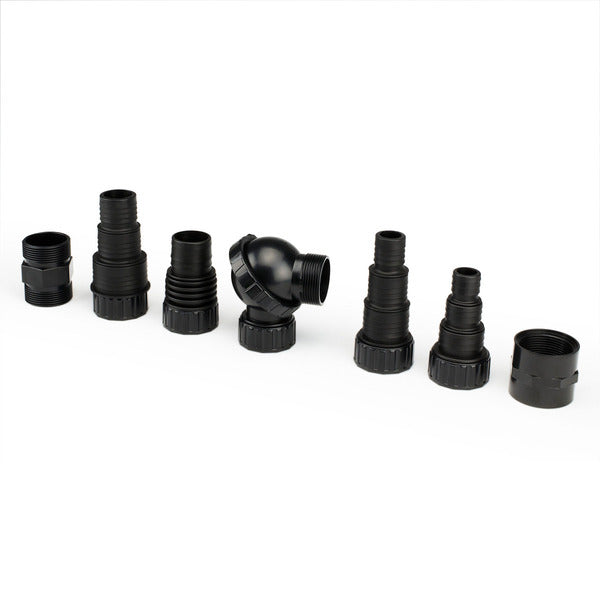

Other features of this pump include the built-in cord strain relief feature that safeguards the power cord, plumbing adapter fittings that make installation easy, and a pump stand for its vertical positioning. To assure customers of its quality, the AquaSurge 5000 comes with a 3-Year Limited Warranty and is backed by Aquascape — the most trusted name in residential pond systems. This is the best pump for very large koi ponds which range from 6,000–10,000+ gallons. In addition to this, it is ideal for high-volume pondless waterfall vaults and commercial or professional-grade water features. This model is also recommended for maximum head heights up to 24 ft which makes it the strongest standard AquaSurge model.

How to Install the Aquascape AquaSurge Pump in a Skimmer

Note: Always disconnect power before installing or servicing the pump. For complete installation instructions, refer to the full Product Manual PDF.

1. Remove the existing pump or clear the skimmer basket of any debris.
2. Attach the appropriate plumbing adapter fittings to the 1.5" MPT pump discharge outlet.
3. Position the rotational ball output so it is in line with your skimmer's discharge plumbing and tighten it.

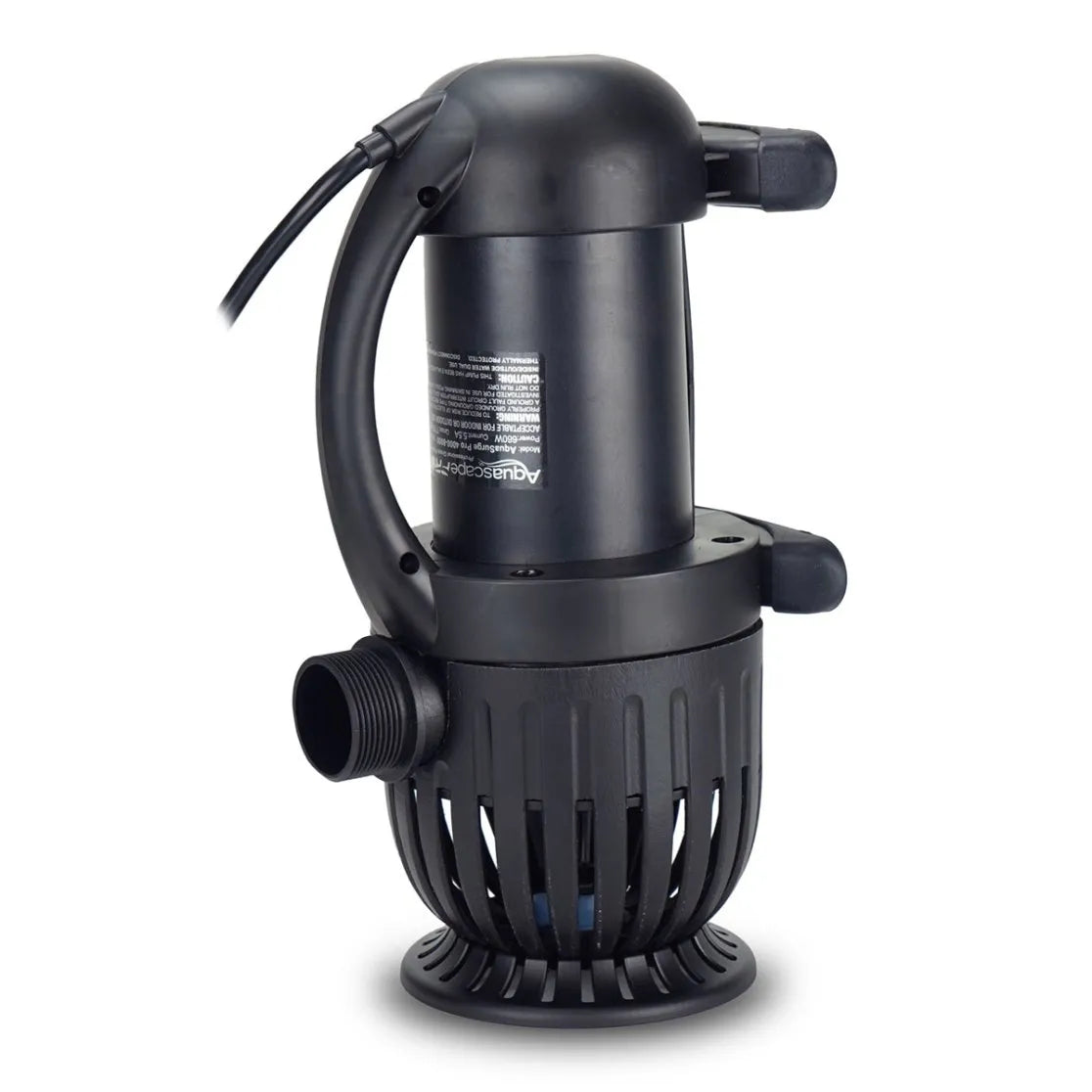

4. Position the pump inside the skimmer basket — flat for most standard skimmer styles, or upright with the pump stand that comes with it.
5. Hook up the plumbing from the pump discharge to your waterfall filter/BioFalls.
6. Lead the 20 ft cord of the pump through the cord access in the skimmer to an outdoor outlet with GFCI.
7. Plug the pump in and check for full flow. Tune the rotational ball output if necessary.
8. Observe for 24 hours to ensure that there are no variations in the functioning and flow for filtration.
