Aqua Ultraviolet - Classic Series 57 Watt UV Clarifier Units (Unions Sizes 3/4" and 2")

MFG ID: A00069

  • Sale
  • $628.90
  • Regular price $898.40


Available Classic UV 57 Watt Series Units:

Classic 57 Watt Unit

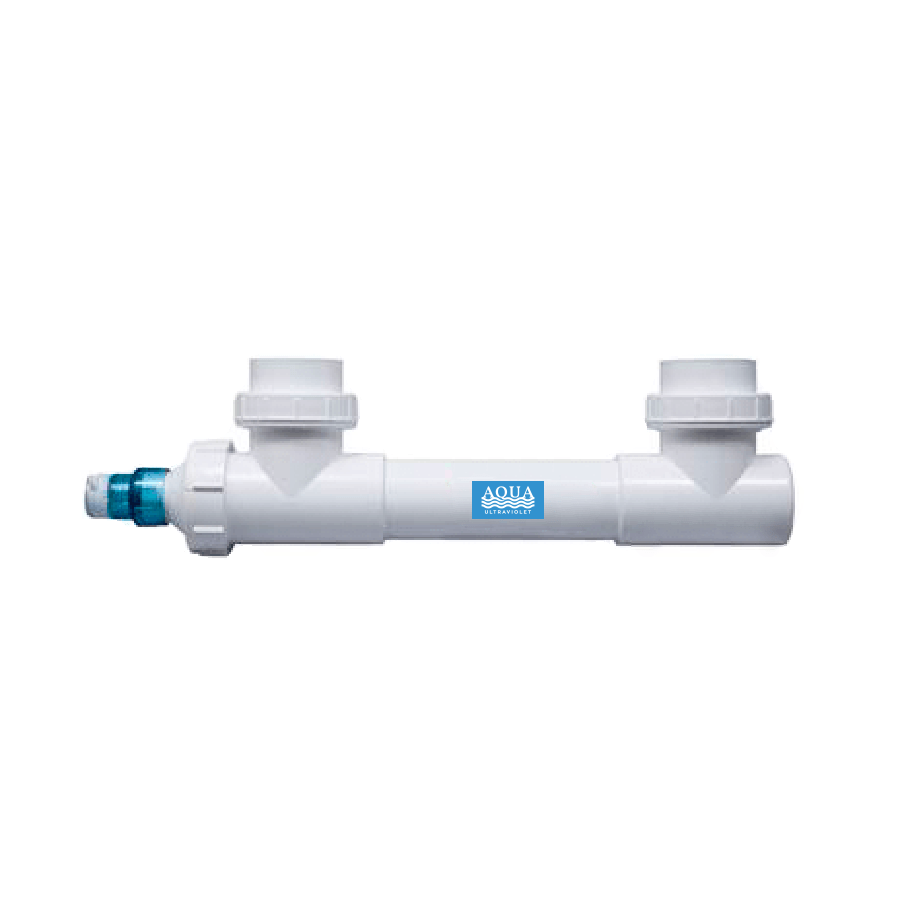

  1. (Item - A00058) Classic, 57 Watt Unit, 3/4″ Inlet/Outlet, White, 120V/60Hz

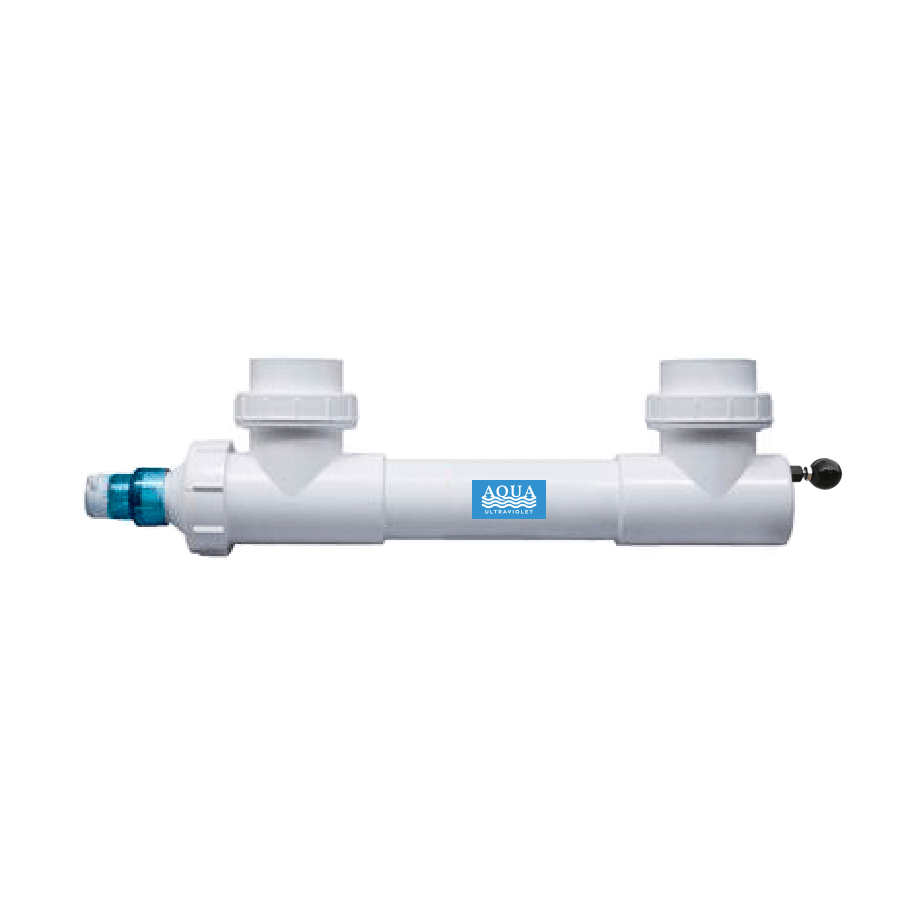

  2. (Item - A00067) Classic, 57 Watt Unit, 3/4″ Inlet/Outlet, White, Wiper*, 120V/60Hz

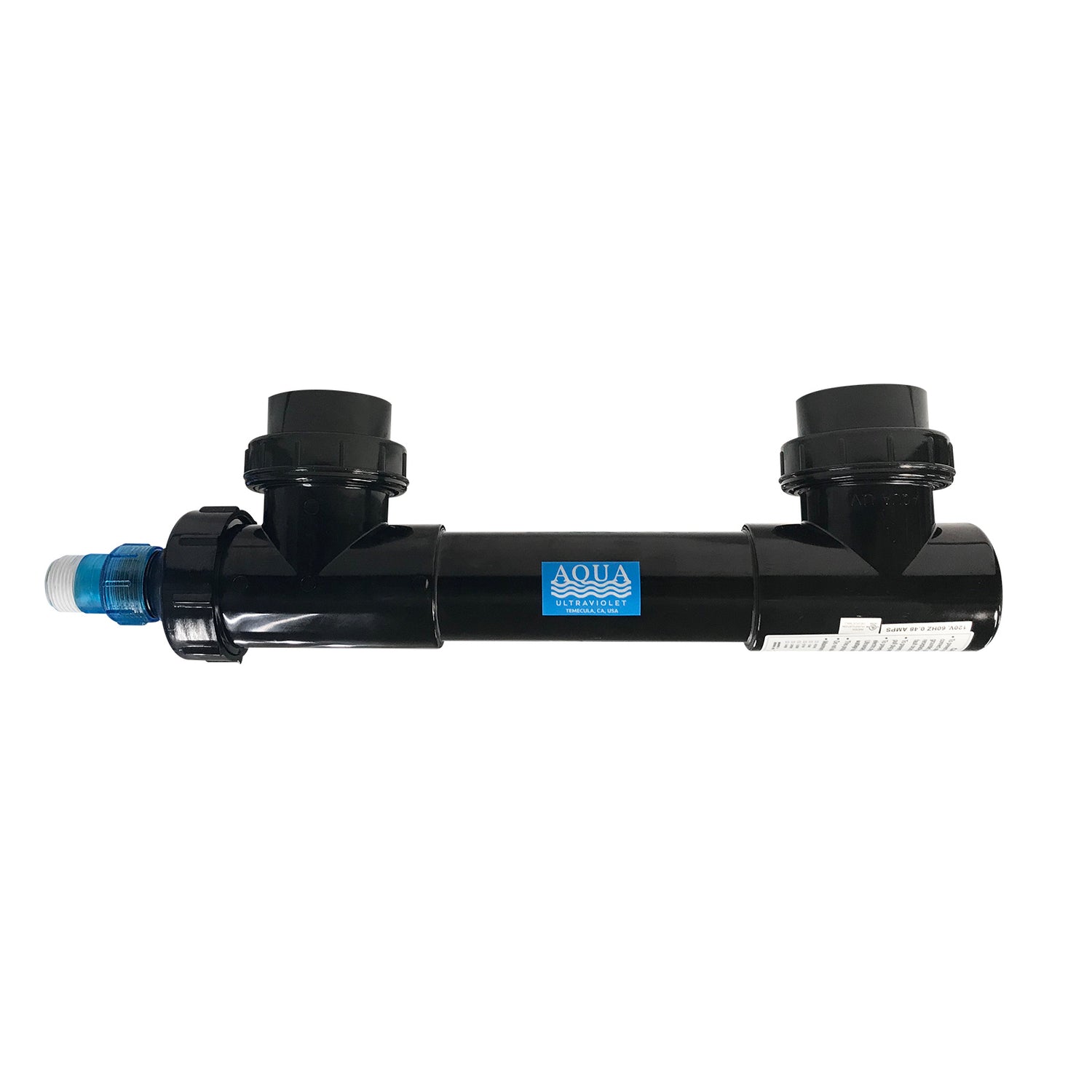

  3. (Item - A00069) Classic, 57 Watt Unit, 3/4″ Inlet/Outlet, Black, 120V/60Hz

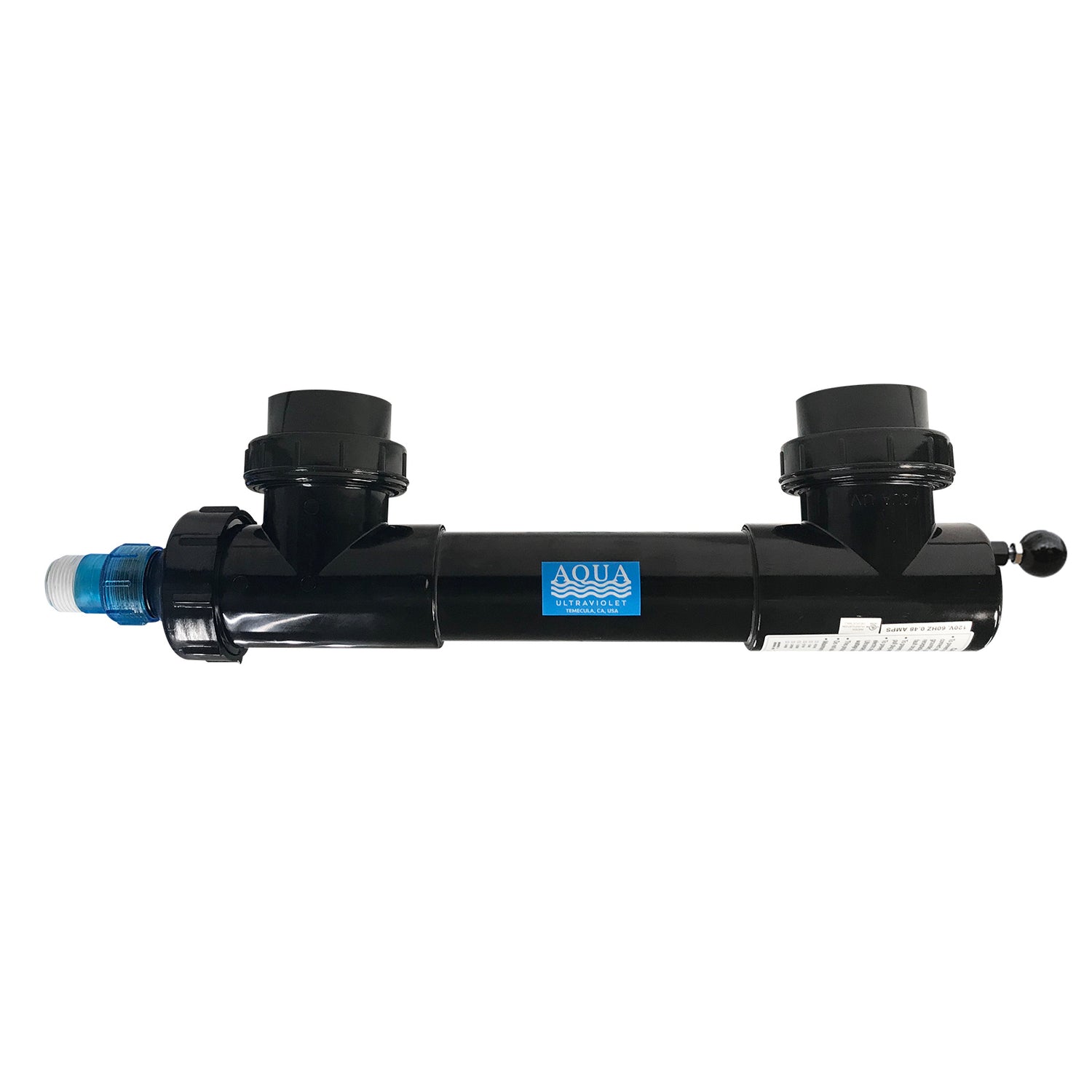

  4. (Item - A00071) Classic, 57 Watt Unit, 3/4″ Inlet/Outlet, Black, Wiper*, 120V/60Hz
  5. (Item - A00057) Classic, 57 Watt Unit, 2″ Inlet/Outlet, White, 120V/60Hz
  6. (Item - A00068) Classic, 57 Watt Unit, 2″ Inlet/Outlet, White, Wiper*, 120V/60Hz
  7. (Item - A00070) Classic, 57 Watt Unit, 2″ Inlet/Outlet, Black, 120V/60Hz
  8. (Item - A00072) Classic, 57 Watt Unit, 2″ Inlet/Outlet, Black, Wiper*, 120V/60Hz

*Aqua Ultraviolet does not recommend utilizing Wipers with Salt Water and if utilized in this manner will void warranty on the Wiper parts.

  • Designed for Outdoor Use.
  • Single End Lamp Connection.
  • Industry's Longest Lamp Life - Up To 14 Months.
  • Rid your pond or water garden of green water guaranteed.

Specifications

Dimensions of Unit: 20” x 3-3/4” x 6”
Dimensions of Unit with Wiper: 21-7/8” x 3-3/4” x 6”
Wiper Clearance: 16”

Number of Lamps

1

120 Volt Amp Draw

0.48

Water Sterilization
Measurements

Freshwater: 1,500 – 3,000 Gallons
Saltwater: 355 Gallons

Recommended Flow
Rate for UV Dosages

at 30,000 µw/cm2 (EOL) GPH: 3,200 (Max Flow Rate)
at 45,000 µw/cm2 (EOL) GPH: 2,133
at 60,000 µw/cm2 (EOL) GPH: 1,600
at 75,000 µw/cm2 (EOL) GPH: 1,280
at 90,000 µw/cm2 (EOL) GPH: 1,066 (Min Flow Rate)

Information for
Reef Tanks

A UV rated in the 30,000 or 45,000 µw/cm2 (EOL) is
ideal for the reef environment. UV’s used at higher
kill rates will destroy the planktonic food supply
for the reef

Information for
Marine Fish

(No reef or live rock) A UV rated in the 75,000
or 90,000 µw/cm2 (EOL) will be the most effective at
controlling fish disease. All UV dosages are
calculated at the end of lamp life (14 months).

Disclaimer

*Aqua Ultraviolet does not recommend utilizing Wipers with
Salt Water and if utilized in this manner will void warranty
on the Wiper parts.
